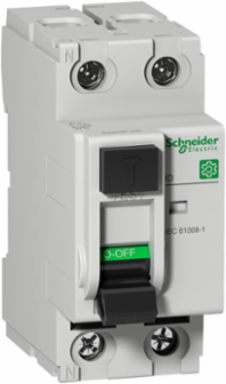

Schneider Electric M9R11225 Residual Current Circuit Breaker 2P 25A Type AC 30mA IP20
- MPN: M9R11225
- PPN: SCH-M9R11225
CAD
$330.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This is a Multi ID residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 25A, AC type protection class and a 30mA earth leakage sensitivity. This product protects against electrical shock by direct or indirect contact and fire hazards. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 250A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The electrical endurance is up to 2000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. The weight is 0.23kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 60°C.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Spain, France, United States |
|---|
| Depth | 73 mm |
|---|
Physical Attributes
| Color | Gray RAL 7035) |
|---|
| Wire Stripping Length | 15 mm for top or bottom connection |
|---|
Complementary Attributes
| Line Rated Current | 25 A |
|---|
| Rated Breaking And Making Capacity | Idm 250 A EN/IEC 61008-1 |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Poles Description | 2P |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0356171720912741, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0159551597713414 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 15 kg CO2 eq., 15.0798148148148 |
| Local Publishable Date | 2026-07-13 |
| Stocking Flag | N |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 0844 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Connection Pitch | 18 mm between phase and neutral |
| Control Type | toggle |
| Device Short Name | ID |
| Electromagnetic Compatibility | 8/20 µs impulse withstand, 250 A EN/IEC 61008-1 |
| Local Signalling | ON, OFF, fault trip |
| Mechanical Durability | 20000 cycles |
| Mounting Support | DIN rail |
| Network Type | AC |
| Number Of Poles | 2P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | residual current circuit breaker (RCCB) |
| Range Of Product | Multi9 |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 18 kg CO2 eq. |
| Tropicalisation | 2 IEC 60068-1 |
| Eleakage Prot Class | type AC |
| Earth Leakage Sensitivity 1 | 30 mA |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect during 20 years the installation against overloads and short-circuits and people and premises at risk of fire or explosion against insulation defects in circuit with assigned voltage 400V and rated current 40A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 4& 10- Sensitivity 300mA& 10- Type of differential protection AC |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 36.792 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 81 mm |
| Certificate Agency | CE |
| [Ui] Rated Insulation Voltage | 440 V AC 50 Hz EN/IEC 61008-1 |
| Earth-leakage Sensitivity | 30 mA |
| Earth-leakage Protection Class | type AC |
| Halogen-free Status | Halogen free plastic parts product |
| Package Weight(Lbs) | 193.000 g |
| Warranty (In Months) | 18 |
| Tsca Regulation | Does not contain Section 6H Chemical |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Connections - Terminals | tunnel type terminal (top or bottom)1-35 mm² - rigid, tunnel type terminal (top or bottom)1-25 mm² - flexibletunnel type terminal (top or bottom): 3 cable(s) 16-16 mm² - rigid, tunnel type terminal (top or bottom): 3 cable(s) 10-10 mm² - flexible, tunnel type terminal (top or bottom)1-25 mm² - flexible with ferrule |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.664652410260858, 0.7 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 3 kg CO2 eq., 2.59427798029811 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Contact Position Indicator | yes |
| Device Application | distribution |
| Electrical Durability | 2000 cycles |
| Energy Efficiency Optimized | False |
| Locking Options Description | padlocking device |
| Mounting Mode | clip-on |
| Network Frequency | 50 Hz |
| Neutral Position | left |
| Power Losses Per Pole | 1.4 W |
| Product Name | Multi9 ID |
| Range | Multi9 |
| Residual Current Tripping Technology | voltage independent |
| Software Version | v5.9.4 |
| Tightening Torque | 3.5-3.5 N.m top or bottom |
| Total Power Losses | 2.8 W |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Rated Current 3 | 25 A |
| Pep Code | ENVPEP2301023EN |
| Pep Verification Date | 2025-04-20 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2018; Spain, SP |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 59 |
| Width Nominal | 36 mm |
| [Ue] Rated Operational Voltage | 220...240 V AC 50 Hz |
| [Uimp] Rated Impulse Withstand Voltage | 6 kVEN/IEC 61008-1 |
| Rated Conditional Short-circuit Current | Inc 10 kA |
| Earth-leakage Protection Time Delay | instantaneous |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536200020 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-60 °C, -40-60 °C |
|---|---|
| Take Back | No |
| Halogene Performance | Halogen free plastic parts product |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| 9 Mm Pitches | 4 |
| Environmental Disclosure | ENVPEP2301023EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2301023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 18.3903175372364 |
| Ambient Air Temperature For Operation | -5-40 °C-5-40 °C |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 95-95 % 55-55 °C |
| Pep Verification Date | 2025-04-20 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | residual current circuit breaker (RCCB) |
|---|
| Range Of Product | Multi9 |
|---|
ETIM
| ETIM 8 | EC000003 |
|---|
| ETIM 9 | EC000003 |
|---|
Surge Protection And Filtering Attributes
| Surge Current | 250 A |
|---|
