Multi9 C60BP Miniature Circuit Breaker 1P 25A C Curve 14kA IP20
Schneider Electric

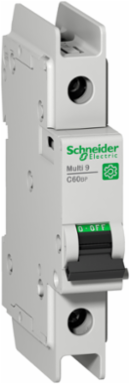

Schneider Electric M9F42125 Multi9 C60BP Miniature Circuit Breaker 1P 25A C Curve 14kA IP20

  • MPN: M9F42125
  • PPN: SCH-M9F42125
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $46.02

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

    Features

    • This miniature circuit breaker (MCB) is fully certified under UL 489 and CSA C22.2 No 5 for branch circuit protection. This means you can confidently design and build panels for the Canadian and US markets, eliminating compliance hurdles and ensuring your equipment passes strict field inspections without a hitch.
    • The Multi9 C60BP series features a true multi-standard global profile, complying with UL 489, CSA, IEC/EN 60947-2, and CCC. By using a single part number worldwide, you simplify your inventory management, streamline your OEM machinery designs, and ensure full operational technology convergence across global footprints.
    • This robust thermal-magnetic breaker delivers a high interrupting rating of 14 kA at 240V AC (under UL 489) and up to 10 kA under industrial IEC standards. This gives your control panels the necessary fault-current resilience to safely isolate overloads and short circuits, protecting expensive downstream automation equipment from catastrophic thermal damage.
    • Engineered with a C-curve tripping characteristic, this device is specifically tuned to handle inductive loads with moderate inrush currents, such as HVAC blowers, small motors, and control transformers. It precisely distinguishes between harmless, brief startup current spikes and genuine electrical faults, eliminating frustrating nuisance tripping while keeping your industrial processes running smoothly.
    • Featuring an ultra-compact 18mm width (one 9mm pitch module per pole), this 1-Pole breaker snaps directly onto standard 35mm DIN rails. The space-saving profile frees up valuable real estate inside dense electrical enclosures, allowing panel builders to maximize density and integrate auxiliary contacts or shunt trips with ease.
    • The top and bottom rugged tunnel terminals securely accommodate wire sizes from 18 to 8 AWG for rigid, flexible, or ferruled conductors. Rated at IP20 touch-safe protection on its terminals and engineered to handle up to 2.5 N.m of tightening torque, it minimizes hot spots and loose terminations, giving your automated systems field-proven reliability and protecting field technicians from accidental contact.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, United States
    Depth72 mm

    Physical Attributes

    Color
    Gray
    Wire Stripping Length14 mm for top or bottom connection

    Complementary Attributes

    Line Rated Current
    25 A 25 °C EN/IEC 60947-2

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Network Type
    AC, DC
    Certificate Agency
    IEC, CCC, CSA, UL
    [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz, 415 V AC 50/60 Hz60 V DC
    Carbon Footprint Of The Distribution Phase [A4]
    0.01760987064537148, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.005714005758669256
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    18 kg CO2 eq., 18.311615384615386
    Local Publishable Date
    2026-07-13
    Stocking Flag
    N
    Device Type
    LV equipment - Low voltage circuit breaker
    Traceability
    No
    Average Life Duration
    15 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    1645
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Market Segmentation
    Commercial
    Connection Pitch
    18 mm between devices
    Control Type
    toggle
    Device Application
    distribution
    Electrical Durability
    10000 cycles
    Local Signalling
    ON/OFF indication
    Mechanical Durability
    20000 cycles
    Mounting Support
    DIN rail
    Number Of Protected Poles
    1
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    miniature circuit-breaker
    Range
    Multi9
    Returnability
    Yes
    Suitability For Isolation
    yes EN/IEC 60947-2
    Tightening Torque
    2.5-2.5 N.m top or bottom
    Total Power Losses
    3.4 W
    Tropicalisation
    2 IEC 60068-1
    Rated Current 3
    25 A
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
    Functional-unit Unit
    unité (unit)
    Energy Consumption On Product Lifetime In Kwh
    44.676
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal
    103 mm
    [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
    Earth-leakage Protection
    without
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    No
    Warranty (In Months)
    18
    Tsca Regulation
    Does not contain Section 6H Chemical
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Poles Description1P
    [Ics] Rated Service Breaking Capacity7.5 kA 75 % GB/T 14048.2 - 240 V AC15 kA 75 % EN/IEC 60947-2 - 60 V DC, 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC7.5 kA 75 % EN/IEC 60947-2 - 240 V AC, 2.25 kA 75 % GB/T 14048.2 - 415 V AC, 15 kA 75 % GB/T 14048.2 - 60 V DC
    Connections - Terminalstunnel type terminal top or bottom) 1-25 mm² 18 AWG...8 AWG) - rigid, with ferrule, tunnel type terminal top or bottom) 1-16 mm² 18 AWG...8 AWG) - flexible
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.35335329914020636, 0.4 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.8711538643062109
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionPPIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Market Segmentation IdCOMMERCIAL
    Product Kit IdentifierN
    Contact Position Indicatoryes
    Curve CodeC
    Device Short NameC60BP
    Energy Efficiency OptimizedFalse
    Magnetic Tripping Limit8.5 x In +/- 20 % AC12 x In +/- 20 % DC
    Mounting Modeclip-on
    Number Of Poles1P
    Power Losses Per Pole3.4 W
    Product NameMulti9 C60
    Provision For Padlockingpadlockable
    Range Of ProductMulti9
    Software Versionv5.9.4
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint20 kg CO2 eq.
    Trip Unit Technologythermal-magnetic
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP1304004EN
    Pep Verification Date2023-03-02
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; BG
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %56
    Width Nominal18 mm
    [Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2
    Halogen-free StatusHalogen free plastic parts product
    Package Weight(Lbs)122.000 g
    Take-backNo
    Customs Code8536200040

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-80 °C, -40-80 °C
    Halogene Performance
    Halogen free plastic parts product
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Carbon Footprint
    19.583936057615087
    Ambient Air Temperature For Operation
    -30-70 °C-30-70 °C
    Eu Rohs Directive
    Compliant
    Ip Degree Of Protection
    IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1304004EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Silicon FreeNo
    9 Mm Pitches2
    Environmental DisclosureENVPEP1304004EN
    Halogen Content PerformanceHalogen free plastic parts product
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % 55-55 °C
    Pep Verification Date2023-03-02
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    miniature circuit-breaker
    Range Of ProductMulti9

    ETIM

    ETIM 8
    EC000042
    ETIM 9EC000042
