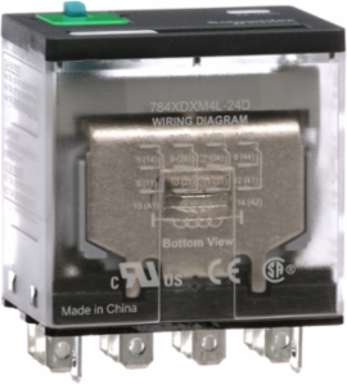

Schneider Electric 784XDXM4L-24D Power relay, SE Relays, 15A, 4PDT, 24 VDC, cover with locking push button and LED
Schneider Electric 784XDXM4L-24D Power relay, SE Relays, 15A, 4PDT, 24 VDC, cover with locking push button and LED
- MPN: 784XDXM4L-24D
- PPN: SCH-784XDXM4L-24D
- UNSPSC: 39122324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$42.08/ EA
Description
The SE Relays 784 series, plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Contacts rated as 15A resistive at 277VAC, motor 1/2hp at 120VAC, 1hp at 277VAC with nominal coil voltage 24VDC , makes relay to be an ideal choice for automation panels and controls. Gold flashed contact 4PDT configuration reduces oxidation and increases shelf life, gives simultaneous control of separate circuits. Socket-mounting option, blade terminal style simplified installation and maintenance and using of protection modules, hold-down clips, and other accessories. Mechanical standard flag indicator displays the relay status during testing or operation.
Features
- Switching current is ideal choice for automation panels and controls.
- 4PDT contact configuration allows simultaneous control of up to 4 separate circuits.
- Socket-mounting option for simplified installation and maintenance.
- Mechanical flag indicator displays the relay status during testing or operation.
- Full-feature covers include an LED indicator and a locking test button.
Specifications
Conformance Attributes
- Product Certifications
- UL, CE, CSA
Complementary Attributes
- Maximum Horse Power Rating
- 0.5 hp 120 V AC 50/60 Hz, 1 hp 277 V AC 50/60 Hz
- Minimum Switching Current
- 10 mA 17 V
Maximum Switching Voltage300 V AC UL, 300 V AC CSA, 250 V AC IEC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 2000 V AC between coil and contact, 2000 V AC between poles, 1500 V AC between contacts
- Local Signalling
- LED, flag
- Vibration Resistance
- +/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz), +/- 1 mm 10-35 Hz), 3 gn 35-150 Hz)
- Carbon Footprint Of The Distribution Phase A4
- 0.010461315004538969, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.013423732330437038, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 35 kg CO2 eq., 34.960263653483985
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Contacts Type And Composition
- 4 NO + 4 NC
- Electrical Durability
- 100000 cycles resistive
- Mounting Support
- socket
- Power Consumption In VA
- 2.85-2.85 VA AC
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Legacy
- Shock Resistance
- 15 gn in operation
- Switch Function
- 4PDT
- Voltage Range
- 0.8...1.1 Un AC/DC
- Medium Desc
- Power relay, SE Relays, 15A, 4PDT, 24 VDC, cover with locking push button and LED
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- 782 series plug-in general purpose relay offers robust and historically proven square base mounting relay platform that provides excellent structural support with clear cover with LED indication and locking push button. Gold flashed contact DPDT configuration reduces oxidation and increases shelf life gives simultaneous control of separate circuits.This product will be in active mode at 24% in overall power consumption of 1.77 W with life span of 10 years and adhering to UL standards.
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; US
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; US
- Connections Terminals3
- Faston terminals
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Drop Out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC, >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.1 Uc DC, >= 0.1 Uc DC
Operating Time20 ms operating, 20 ms tripping
Ie Rated Operational Current215 A at 120...277 V AC conforming to UL, 15 A at 28 V DC conforming to UL, 15 A at 120/150 V AC conforming to CSA, 10 A at 151/277 V AC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC, 7.55 A at 250 V AC (NC) conforming to IEC
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.12902710413694723
Carbon Footprint Of The Manufacturing Phase A1 To A31 kg CO2 eq., 1.1000181558812085
Ie Rated Operational Current515 A at 120...277 V AC conforming to UL, 15 A at 28 V DC conforming to UL, 15 A at 120/150 V AC conforming to CSA, 10 A at 151/277 V AC conforming to CSA, 15 A at 28 V DC conforming to CSA, 15 A at 250 V AC (NO) conforming to IEC, 15 A at 28 V DC (NO) conforming to IEC, 7.55 A at 250 V AC (NC) conforming to IEC, 7.55 A at 28 V DC (NC) conforming to IEC
Local Publishable Date2026-01-12
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2403024EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Contacts Materialsilver alloy, gold flashed
Control Typelockable test button
Mechanical Durability10000000 cycles
Package Weight Lbs80 g
Power Consumption In W1.95-1.95 W DC
Product Or Component Typepower relay
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint36 kg CO2 eq.
Connections TerminalsFaston terminals
Stocking FlagY
Pep CodeENVPEP2403024EN
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; CN
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; US
Global Commercial StatusEnd of commerc. announced
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 36.21319396083712
- Ambient Air Temperature For Storage
- -40-85 °C
- Environmental Disclosure
- ENVPEP2403024EN
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0005-ed2-2016 03 29
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-40-55 °C
Circularity ProfileENVEOLI2403024EN
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
Pep CodeENVPEP2403024EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- power relay
Range Of ProductLegacy
Input Attributes
- Input Current
- 15 A
- Input Voltage
- 24 V DC
Input Resistance303 Ohm
Specifications
- Depth
- 27.3 mm
