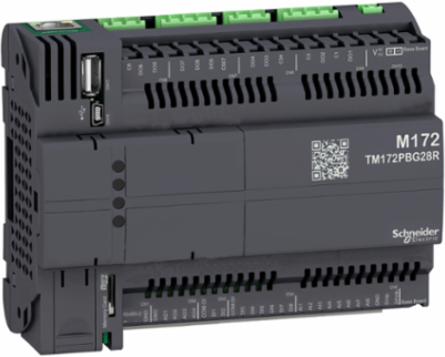

Schneider Electric TM172PBG28R Modicon M171/M172/M173 Controller, 28 IO, 24V AC/DC, IP20

  • MPN: TM172PBG28R
  • PPN: SCH-TM172PBG28R
  • UNSPSC: 32151705

CAD

$572.00

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 8 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 8 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.3kg. The main application of this module is HVAC control. This product is certified by CE, EAC, CSA and CURus. It meets EN/IEC 60730 standard. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.

Features

  • Flexible, faster and easier to deploy
  • Ready to connect device
  • Advanced algorithms for greater energy efficiency
  • Sustainable, protect people, assets and environment
  • Modicon controllers are part of EcoStruxure Machine
  • Reduce energy consumption and improves system efficiency
  • CE approved
  • cURus, EAC and CSA certified
  • IP20 degree of protection
  • Wide range of operating temperature from -20°C to 65°C

Documentation & Downloads

Specifications

Key Specifications

Country of OriginItaly, United States
Depth60.5 mm
Weight420.5 g

Complementary Attributes

Us Rated Supply Voltage24 V +/- 10 % AC20...38 V DC

Important Information Attributes

Persona Type IdsEU, OM, OM8, SI
Local Signalling1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power
Number Of Port1 CAN port - screw terminal block1 USB type A - USB type A female1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
Input/Output Number8 digital input, 8 analog input4 analog output, 8 digital output
Carbon Footprint Of The End Of Life Phase C1 To C41 kg CO2 eq., 1.037092482472762
Carbon Footprint Of The Manufacturing Phase A1 To A337 kg CO2 eq., 37.02101742543932
Local Data StatusPublishable
Return IndicatorN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1709014EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1929
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Display TypeWithout Display
Power Consumption In W15 W 24 V AC/DC
Product Or Component Typeprogrammable controllers
Range Of ProductModicon M171/M172
ReturnabilityNo
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint660 kg CO2 eq.
UpgradeabilityYes
Database Version2024-01
Height Nominal110 mm
Number Of Inputs/Outputs28
Customs Code8537109160
Packaging Weight In G70.9
Functional Unit Quantity1
Reference Lifetime In Y10
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Mounting SupportDIN rail, panel mounting with accessory
Certificate AgencyCSA, EAC, RCM, CE, cURus
Carbon Footprint Of The Distribution Phase A40.1562931105123967, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.02976637944179302, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6622 kg CO2 eq., 621.7379964170797
Local Publishable Date2026-01-12
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Overvoltage CategoryII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific ApplicationHVAC and pumping solution
Realtime Clockbuilt-in clock at -20-60 °C
Sensor Power Supply5-5 V DC 50 mA supplied by the controller24-24 V DC 150 mA supplied by the controller
Sustainable PackagingNo
UpdatabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Sourceextrapolated product
Width Nominal144 mm
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit DescriptionTo manage a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh1314

Environment Attributes Main

Ambient Air Temperature For Operation-20-60 °C UL 60730-1, -20-60 °C UL 60730-1, -20-65 °C with derating UL 60730-1, -20-65 °C with derating UL 60730-1, -20-65 °C with derating UL 60730-1-20-60 °C UL 60730-1, -20-60 °C UL 60730-1, -20-65 °C with derating UL 60730-1
Directives86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1709014EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % non-condensing
Pep Verification Date2025-09-01
Psr VersionNo PSR
Ambient Air Temperature For Storage-30-70 °C, -30-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint659.9821658149459
Environmental DisclosureENVPEP1709014EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1709014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Typeprogrammable controllers
UpgradeabilityYes
Range Of ProductModicon M171/M172

ETIM

ETIM 8EC000236
ETIM 10EC000236
ETIM 9EC000236

Output Attributes

Discrete Output Number2 relay outputs SPST with independent common, 1 relay outputs SPDT with independent common, 3 relay outputs SPST with same common, 2 relay outputs SPST with same common
Discrete Output Current1 A relay SPDT3 A relay SPST
Analogue Output Number2 voltage 0...10 V2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)

Input Attributes

Analogue Input Typeimpedance 0...1500 hOhm, impedance 0...300 daOhm, NTC temperature probe - 50...110 °C 0.1 °C extended)voltage 0...10 V, NTC temperature probe - 40...150 °C 0.1 °Ccurrent 0...20 mA/4...20 mAPTC temperature probe - 55...150 °C 0.1 °Cvoltage 0...5 V absolute or ratiometric)Pt 1000 temperature probe - 200...850 °C 0.1 °C
Discrete Input Current2.5 mA
Discrete Input Number8
Input Impedance10 kOhm
Analogue Input Number8 configurable by pair
Discrete Input Logicsink or source (positive/negative)
Discrete Input Voltage24 V AC/DC

Batteries & Runtime Attributes

Removable BatteryYes
