Schneider Electric TM172PDG07R Controller, Modicon M171/M172/M173, performance display 7 IO, Ethernet, Modbus
Schneider Electric TM172PDG07R Controller, Modicon M171/M172/M173, performance display 7 IO, Ethernet, Modbus
- MPN: TM172PDG07R
- PPN: SCH-TM172PDG07R
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$537.46/ EA
Description

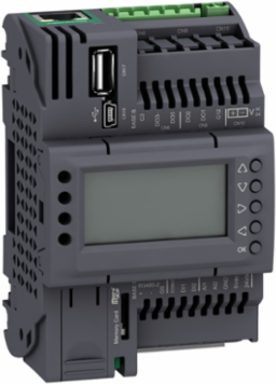

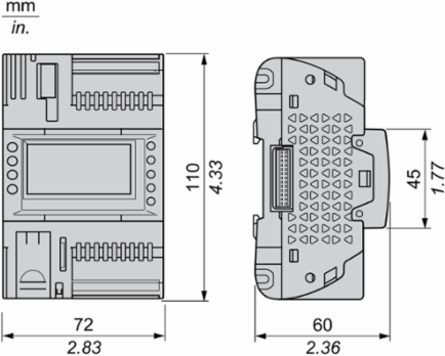

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 2 discrete inputs with sink or source (positive/negative) up to 2kHz discrete logic. It is a module with discrete input voltage of 24V AC/DC, 5mA. It offers 2 configurable by pair analogue input. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 72mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.2kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Specifications
Specifications
- Range Of Product
- Modicon M171/M172
- Variant
- programmable
- Number Of Inputs/Outputs
- 7
- Analogue Input Number
- 2 configurable by pair
- Product Specific Application
- HVAC
Discrete Output Number1 relay outputs SPDT with independent common || 2 relay outputs SPST with same common
Product Or Component Typeprogrammable controllers
Discrete Output Current3 A relay SPST || 3 A relay SPDT
Discrete Input Number2
Complementary
- Power Consumption In W
- 10 W 24 V AC/DC
- Mounting Support
- DIN rail || panel mounting with accessory
- Display Type
- backlit LCD - 128 x 64 pixels
- Number Of Port
- 1 CAN port - screw terminal block || 1 USB type A - USB type A female || 1 USB type mini B - USB device port Mini-B || 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) || 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
- Sensor Power Supply
- 5-5 V DC 40 mA supplied by the controller || 24-24 V DC 100 mA supplied by the controller
- Input Impedance
- 20 kOhm
- Realtime Clock
- built-in clock, clock drift <= 30 s/month at -20-60 °C
- Analogue Input Type
- NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C) || NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm at 25 °C) || voltage 0...10 V 1 digit > 10 kOhm || voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric) || impedance 0...1500 hOhm 1 hOhm 10 kOhm || impedance 0...300 daOhm 1 daOhm 1500 Ohm || PTC temperature probe - 55...150 °C 0.1 °C 1500 Ohm || Pt 1000 temperature probe - 200...850 °C 0.1 °C 1500 Ohm || current 0...20 mA/4...20 mA 1 digit < 150 Ohm || direct input 10 kOhm Dry contact)
- Depth
- 60.5 mm
- Discrete Input Logic
- sink or source (positive/negative) up to 2 kHz
Height110 mm
Discrete Input Voltage24 V AC/DC
Net Weight0.2 kg
[Us] Rated Supply Voltage24 V +/- 10 % AC || 20...38 V DC
Local Signallingprogrammable 1 LED red) || programmable 1 LED yellow) || programmable 1 LED green) || power 1 LED green)
Discrete Input Current5 mA AC/DC
Width72 mm
Overvoltage CategoryII
Input/Output Number2 digital input || 2 analog input || 3 digital output
Measurement Accuracy0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit || 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit || 4...20 mA +/- 1 % of full scale +/- 1 digit || 0...10 V +/- 1 % of full scale +/- 1 digit || 0...5 V +/- 1 % of full scale +/- 1 digit || daOhm 0...300 daOhm +/- 2.5 daOhm || NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C || NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C || NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C || PTC - 55...155 °C +/- 1.1 °C || Pt 1000 - 200...-100 °C +/- 10 °C || Pt 1000 - 100...-50 °C +/- 2.5 °C || Pt 1000 - 50...100 °C +/- 1.5 °C || Pt 1000 100…400 °C +/- 2.4 °C || Pt 1000 400...850 °C +/- 10 °C || hOhm 0...750 hOhm +/- 8.5 hOhm || hOhm 750 hOhm...1500 hOhm +/- 24 hOhm
Environment
- Product Certifications
- EAC || CSA || RCM || CE || cURus
- Pollution Degree
- 2
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Relative Humidity
- 5-95 % non-condensing
- Operating Altitude
- 0...2000 m
StandardsEN 60730-1 || UL 60730-1 || IEC 61000-4-6 || IEC 61000-4-3 || UL 60730-2-9 || IEC 61000-4-4 || IEC 61000-4-2 || CSA E60730-2-9 || IEC 61000-4-5 || EN 60068-2-6 Fc || IEC 61000-4-11 || EN 60730-2-9 || EN 60068-2-27 || CAN/CSA-E60730-1 || UL94 (material V0)
Ambient Air Temperature For Operation-20-60 °C
Ambient Air Temperature For Storage-30-70 °C
Ip Degree Of ProtectionIP20
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1803011EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Upgradeability
- Upgradeable through digital modules and upgraded components
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1803011EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
