Schneider Electric TM172OBM28R Modicon Controller 28 I/O, 110 mm Height, IP20, 24 V Supply
- MPN: TM172OBM28R
- PPN: SCH-TM172OBM28R
- UNSPSC: 32151705
CAD
$518.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

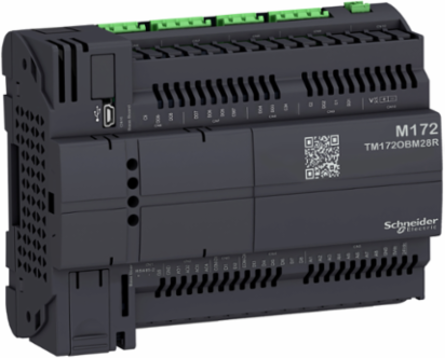

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 8 digital inputs, 8 analog inputs, 8 digital outputs, and 4 analog outputs. This controller embeds one CAN expansion bus port, two RS485 ports, one USB-B port, and one Communication module port. It is a programmable logic controller for HVAC and Pumping applications. Dis are 24 VACDC, high-speed counters, AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm. DOs are SPDT relays, or SPST 3A with the same or independent common, AOs are 0-10V, 4-20mA, PWM (2kHz, 24Vdc). It measures 144mm wide, 60.5mm deep, 110mm high, and weighs 0.300kg. This controller is designed for HVAC solutions. It is certified by CE, RCM, EAC, CSA and CURus. It is compatible with screw terminal blocks, remote display, and communication modules. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Features
- Modicon M171/M172/M173 logic controllers help to maximize profitability/energy efficiency
- Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert - HVAC
- All of the features and functions you need to design and build machines more profitably are already embedded
- Application Function Blocks reduce energy consumption and help to improve system efficiency
- Stay connected everywhere with multiple BMS connectivity and web server embedded
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|---|
| Depth | 60.5 mm |
| Weight | 385 g |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 24 V +/- 10 % AC20...38 V DC |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Local Signalling | 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power |
| Mounting Support | DIN rail, panel mounting with accessory |
| Certificate Agency | EAC, CE, cURus, CSA, RCM |
| Carbon Footprint Of The Distribution Phase A4 | 0.14309832948221815, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.027253403293912754, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 497 kg CO2 eq., 497.3903971336638 |
| Local Publishable Date | 2026-01-12 |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | HVAC control |
| Realtime Clock | built-in clock, clock drift <= 30 s/month at -20-65 °C |
| Sensor Power Supply | 5-5 V DC 50 mA supplied by the controller24-24 V DC 150 mA supplied by the controller |
| Sustainable Packaging | No |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 144 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | To manage a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1051.2 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Measurement Accuracy | NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °CNTC NK103 Beta 3977 110...137 °C +/- 1.9 °CNTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, PTC - 55...155 °C +/- 1.1 °C, Pt 1000 - 200...-100 °C +/- 10 °CPt 1000 - 100...-50 °C +/- 2.5 °CPt 1000 - 50...100 °C +/- 1.5 °CPt 1000 100…400 °C +/- 2.4 °C, Pt 1000 400...850 °C +/- 10 °C, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit0...20 mA, 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, hOhm 0...1500 hOhm +/- 8.5 hOhm, daOhm 0...300 daOhm +/- 2.5 daOhm |
| Number Of Port | 1 CAN port - screw terminal block1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) |
| Input/Output Number | 8 digital input, 8 analog input4 analog output, 8 digital output |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.9 kg CO2 eq., 0.9495377069013399 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 34 kg CO2 eq., 33.895580758131125 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1709014EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Display Type | Without Display |
| Power Consumption In W | 12 W 24 V AC/DC |
| Product Or Component Type | programmable controllers |
| Range Of Product | Modicon M171/M172 |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 532 kg CO2 eq. |
| Upgradeability | Yes |
| Database Version | 2024-01 |
| Height Nominal | 110 mm |
| Number Of Inputs/Outputs | 28 |
| Customs Code | 8537109160 |
| Packaging Weight In G | 85 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-60 °C horizontal UL 60730-1, -20-60 °C horizontal UL 60730-1, -20-60 °C horizontal UL 60730-1-20-65 °C UL 60730-1, -20-65 °C UL 60730-1, -20-60 °C horizontal UL 60730-1 |
|---|---|
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1709014EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-95 % non-condensing |
| Pep Verification Date | 2025-09-01 |
| Psr Version | No PSR |
| Ambient Air Temperature For Storage | -30-70 °C, -30-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 532.4058673314723 |
| Environmental Disclosure | ENVPEP1709014EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1709014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | programmable controllers |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|---|
| ETIM 10 | EC000236 |
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Discrete Output Current | 3 A relay SPDT, 3 A relay SPST |
|---|---|
| Analogue Output Number | 2 voltage 0...10 V2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz) |
| Discrete Output Number | 2 relay outputs SPST with independent common, 1 relay outputs SPDT with independent common, 3 relay outputs SPST with same common, 2 relay outputs SPST with same common |
|---|
Input Attributes
| Analogue Input Type | impedance 0...1500 hOhm 1 hOhm 10 kOhm, impedance 0...300 daOhm 1 daOhm 2 kOhm, NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhmvoltage 0...10 V 1 digit > 10 kOhm, NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm extended), current 0...20 mA/4...20 mA 1 digit < 150 OhmPTC temperature probe - 55...150 °C 0.1 °C 2 kOhm, voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric)Pt 1000 temperature probe - 200...850 °C 0.1 °C 2 kOhm, direct input > 10 kOhm |
|---|---|
| Discrete Input Current | 2.5 mA |
| Discrete Input Number | 8 |
| Input Impedance | 10 kOhm |
| Analogue Input Number | 8 configurable by pair |
|---|---|
| Discrete Input Logic | sink or source (positive/negative) |
| Discrete Input Voltage | 24 V AC/DC |
Batteries & Runtime Attributes
| Removable Battery | Yes |
|---|
Accessories
