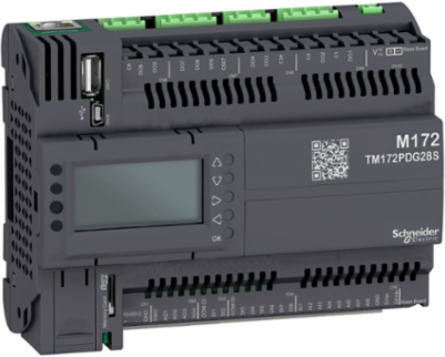

Schneider Electric TM172PDG28S Modicon M171/M172/M173 Controller with 28 I/O, Modbus, 15W Power
- MPN: TM172PDG28S
- PPN: SCH-TM172PDG28S
CAD
$666.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Modicon M171/M172/M173 Controller with 28 I/O, Modbus, 15W Power
Documentation & Downloads
Specifications
Key Specifications
- Analogue Output Number
- 2 voltage 0...10 V || 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
- Discrete Output Number
- 1 relay outputs SPDT with independent common || 3 relay outputs SPST with same common || 2 relay outputs SPST with same common || 2 solid state, isolated SSR with independent common
- Product Or Component Type
- programmable controllers
- Discrete Output Current
- 0.5 A solid state, isolated || 1 A relay SPDT || 3 A relay SPST
- Discrete Input Number
- 8
Range Of ProductModicon M171/M172
Variantprogrammable
Number Of Inputs/Outputs28
Analogue Input Number8 configurable by pair
Product Specific ApplicationHVAC and pumping solution
Complementary
- Power Consumption In W
- 15 W 24 V AC/DC
- Mounting Support
- DIN rail || panel mounting with accessory
- Display Type
- backlit LCD - 128 x 64 pixels
- Number Of Port
- 1 CAN port - screw terminal block || 1 USB type A - USB type A female || 1 USB type mini B - USB device port Mini-B || 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP) || 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
- Sensor Power Supply
- 5-5 V DC 50 mA supplied by the controller || 24-24 V DC 150 mA supplied by the controller
- Input Impedance
- 20 kOhm
- Realtime Clock
- built-in clock at -20-55 °C
- Analogue Input Type
- impedance 0...1500 hOhm || impedance 0...300 daOhm || NTC temperature probe - 50...110 °C 0.1 °C extended) || voltage 0...10 V || NTC temperature probe - 40...150 °C 0.1 °C || current 0...20 mA/4...20 mA || PTC temperature probe - 55...150 °C 0.1 °C || voltage 0...5 V absolute or ratiometric) || Pt 1000 temperature probe - 200...850 °C 0.1 °C
- Depth
- 60.5 mm
- Discrete Input Logic
- sink or source (positive/negative)
Height110 mm
Discrete Input Voltage24 V AC/DC
Net Weight0.3 kg
[Us] Rated Supply Voltage24 V +/- 10 % AC || 20...38 V DC
Local Signallingprogrammable 1 LED red) || programmable 1 LED yellow) || programmable 1 LED green) || power 1 LED green)
Discrete Input Current2.5 mA
Width144 mm
Overvoltage CategoryII
Input/Output Number8 digital input || 8 analog input || 4 analog output || 8 digital output
Environment
- Product Certifications
- EAC || cURus || CSA || CE
- Pollution Degree
- 2
- Directives
- 2006/95/EC - low voltage directive || 86/188/EEC - physical agents (noise) directive
- Relative Humidity
- 5-95 % non-condensing
- Operating Altitude
- 0...2000 m
StandardsEN/IEC 60730 || UL94 (material V0)
Ambient Air Temperature For Operation-20-55 °C UL 60730-1
Ambient Air Temperature For Storage-30-70 °C
Ip Degree Of ProtectionIP20
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1709014EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Upgradeability
- Upgradeable through digital modules and upgraded components
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1709014EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Accessories
