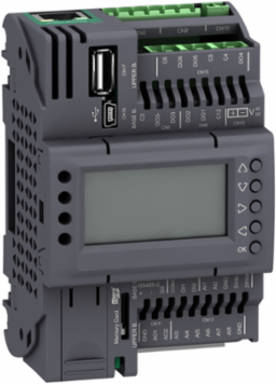

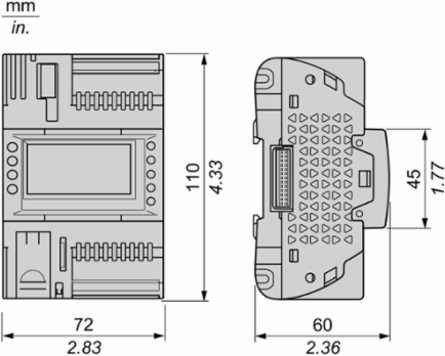

Schneider Electric TM172PDG18S Modicon M171 Performance Display Controller, 18 IO, Ethernet, AC/DC 24V
- MPN: TM172PDG18S
- PPN: SCH-TM172PDG18S
CAD
$648.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 2 digital inputs, 8 analog inputs, 6 digital outputs, 2 analog outputs, and a display. It has an Ethernet port, a CAN bus port, 2x RS485 ports, a USB-A, a USB-B, an SD card slot, a Communication module port. It is a programmable logic controller for HVAC and Pumping applications. DIs are high-speed counters, AIs are NTC, PT1000, PTC, 0-20mA, 4-20mA, 0-5V, 0-10V, hOhm, daOhm, and DIs. DOs are SPDT relay 3A, SPST 3A (same or independent common), SSR 0.5A, AOs are 0-10V, 4-20mA, PWM (2kHz, 24Vdc). It measures 72mm wide, 60.5mm deep, 110mm high, and weighs 0.225kg. This controller is designed for HVAC solutions. It is certified by CE, RCM, EAC, CSA and CURus. It is compatible with screw terminal blocks, remote display, and communication modules. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Italy, United States |
|---|
| Depth | 60.5 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Local Signalling | 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power |
| Mounting Support | panel mounting with accessory, DIN rail |
| Certificate Agency | RCM, CSA, cURus, EAC, CE |
| Carbon Footprint Of The Distribution Phase [A4] | 0.09849625276048783, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.001665909682600471, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 456 kg CO2 eq., 455.941197372525 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Display Type | Backlit LCD - 128 x 64 pixels |
| Power Consumption In W | 11 W 24 V AC/DC |
| Product Or Component Type | programmable controllers |
| Range Of Product | Modicon M171/M172 |
| Returnability | Yes |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 488 kg CO2 eq. |
| Upgradeability | Yes |
| Pep Code | ENVPEP1803011EN |
| Pep Verification Date | 2025-09-01 |
| Psr Version | No PSR |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Width Nominal | 72 mm |
| Number Of Inputs/Outputs | 18 |
| Package Weight(Lbs) | 278 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Measurement Accuracy | 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit0...20 mA, 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, daOhm 0...300 daOhm +/- 2.5 daOhmNTC NK103 Beta 3977 - 40...+110 °C +/- 1 °CNTC NK103 Beta 3977 110...137 °C +/- 1.9 °CNTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, PTC - 55...155 °C +/- 1.1 °C, Pt 1000 - 200...-100 °C +/- 10 °CPt 1000 - 100...-50 °C +/- 2.5 °CPt 1000 - 50...100 °C +/- 1.5 °CPt 1000 100…400 °C +/- 2.4 °C, Pt 1000 400...850 °C +/- 10 °C, hOhm 0...750 hOhm +/- 8.5 hOhmhOhm 750 hOhm...1500 hOhm +/- 24 hOhm |
| Number Of Port | 1 CAN port - screw terminal block1 USB type A - USB type A female1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver) |
| Input/Output Number | 2 analog output6 digital output8 analog input, 2 digital input |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.7 kg CO2 eq., 0.6754610366628497 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 31 kg CO2 eq., 31.22139359517117 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1803011EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Overvoltage Category | II |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Specific Application | HVAC |
| Realtime Clock | built-in clock, clock drift <= 30 s/month at -20-60 °C |
| Sensor Power Supply | 5-5 V DC 40 mA supplied by the controller24-24 V DC 100 mA supplied by the controller |
| Sustainable Packaging | Yes |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To manage a wide range of HVAC/R and pumping applications with a 100% of the time for 10 years |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Italy, IT |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Asia Pacific, APAC |
| Height Nominal | 110 mm |
| [Us] Rated Supply Voltage | 24 V +/- 10 % AC20...38 V DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109160 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -30-70 °C, -30-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 487.9382141668021 |
| Circularity Profile | ENVEOLI1803011EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1803011EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -20-60 °C-20-60 °C |
| Environmental Disclosure | ENVPEP1803011EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Relative Humidity | 5-95 % non-condensing |
| Pep Verification Date | 2025-09-01 |
| Psr Version | No PSR |
General Attributes
| Product Or Component Type | programmable controllers |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Discrete Output Current | 3 A relay SPST, 3 A relay SPDT0.2 A solid state, isolated |
|---|---|
| Analogue Output Number | 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz) |
| Discrete Output Number | 1 relay outputs SPST with independent common, 1 relay outputs SPDT with independent common, 2 relay outputs SPST with same common2 solid state, isolated SSR with independent common |
|---|
Input Attributes
| Analogue Input Type | NTC NK103 Beta 3977 temperature probe - 40...137 °C 0.1 °C 10 kOhm at 25 °C)NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C 0.1 °C 10 kOhm at 25 °C)voltage 0...10 V 1 digit > 10 kOhm, voltage 0...5 V 1 digit > 20 kOhm absolute or ratiometric), impedance 0...1500 hOhm 1 hOhm 10 kOhm, impedance 0...300 daOhm 1 daOhm 1500 OhmPTC temperature probe - 55...150 °C 0.1 °C 1500 OhmPt 1000 temperature probe - 200...850 °C 0.1 °C 1500 Ohm, current 0...20 mA/4...20 mA 1 digit < 150 Ohmdirect input 10 kOhm Dry contact) |
|---|---|
| Discrete Input Current | 5 mA AC/DC |
| Discrete Input Number | 2 |
| Input Impedance | 10 kOhm |
| Analogue Input Number | 8 configurable by pair |
|---|---|
| Discrete Input Logic | sink or source (positive/negative) up to 2 kHz |
| Discrete Input Voltage | 24 V AC/DC |
Batteries & Runtime Attributes
| Removable Battery | Yes |
|---|
