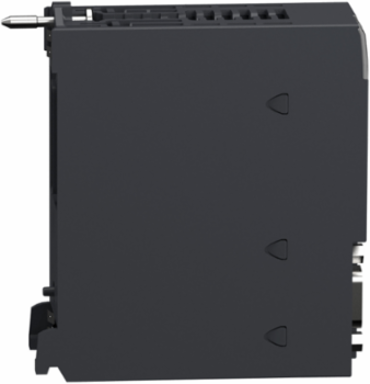

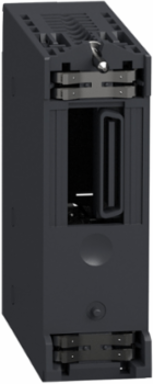

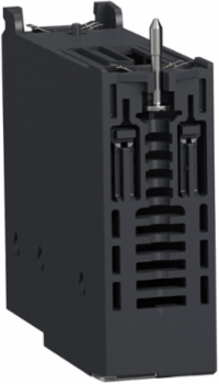

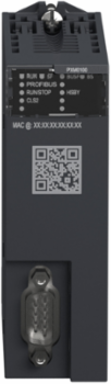

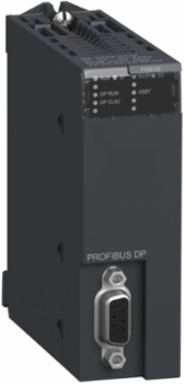

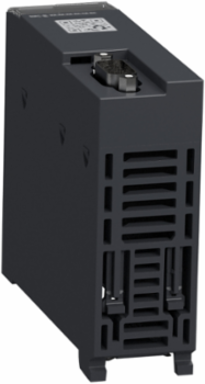

Schneider Electric PMEPXM0100 Profibus Communication Module for Modicon M580, 24 V DC, 0.270 kg
- MPN: PMEPXM0100
- PPN: SCH-PMEPXM0100
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Profibus Communication Module from Schneider Electric is engineered to enhance communication capabilities for the Modicon M580 system. With a reliable 24 V DC power supply requirement, this module facilitates seamless integration and data exchange, making it an essential component for modern automation environments. Weighing in at just 0.270 kg, it is designed for efficient installation and operations, ensuring that users can maintain high-performance standards in sophisticated industrial applications. This module stands out by providing robust connectivity options that support the demands of complex control systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, Sweden, United States
Communications & Management Attributes
- Communication Service
- implicit exchange of process data
Complementary Attributes
- Integrated Connection Type
- Profibus DP - 1 SUB-D 9-pin female
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Transmission Rate
- 9.6 kbit/s, 1200 m, 19.2 kbit/s, 1200 m, 93.75 kbit/s, 1200 m187.5 kbit/s, 1000 m500 kbit/s, 400 m1.5 Mbit/s, 200 m3 Mbit/s, 100 m, 12 Mbit/s, 100 m
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current Consumption
- 43 mA 24 V typical70 mA 24 V maximum
- Module Format
- standard
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon M580
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2309052EN
- Number Of Server Device(S)
- 125
- Package Weight(Lbs)
- 320.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2309052EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1946
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Bus TypeProfibus DP
Isolation Voltage1500 V 1 min 50/60 Hz
Power Consumption In W1040 mW 24 V typical1690 mW 24 V maximum
Product Or Component TypeProfibus communication module
ReturnabilityNo
Transmission Support MediumProfibus DP twisted shielded pairs cable
[Us] Rated Supply Voltage24 V DC internal power supply via rack
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8517620090
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Operating Altitude
- <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP2309052EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 10-95 %
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2309052EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2309052EN
General Attributes
- Product Or Component Type
- Profibus communication module
Range Of ProductModicon M580
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
