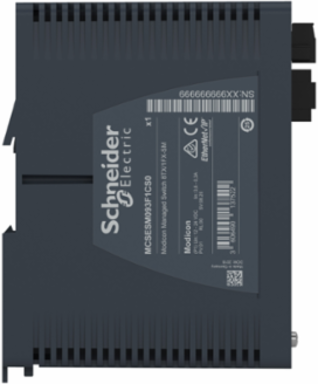

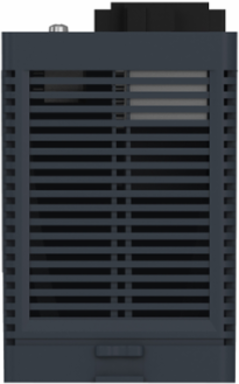

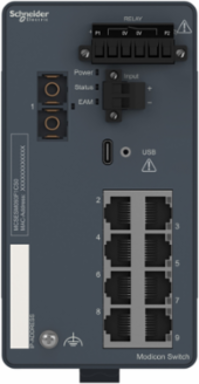

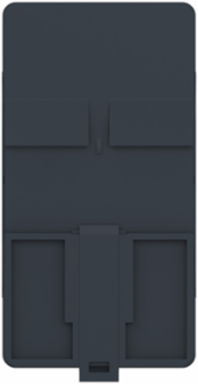

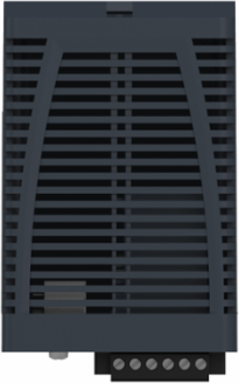

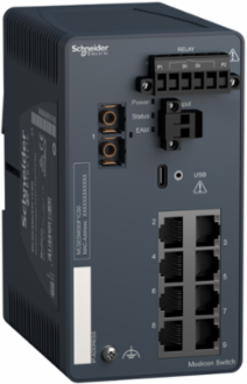

Schneider Electric MCSESM093F1CS0 Modicon Managed Switch - 8 Copper Ports, 1 Fiber Optic, 100m Length
Schneider Electric MCSESM093F1CS0 Modicon Managed Switch - 8 Copper Ports, 1 Fiber Optic, 100m Length
- MPN: MCSESM093F1CS0
- PPN: SCH-MCSESM093F1CS0
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4263.71/ EA
Description
The Modicon Managed Switch from Schneider Electric is designed to optimize your network infrastructure with its robust 8-port copper and 1-port fiber optic configuration. This Ethernet TCP/IP managed switch supports a variety of communication protocols and features advanced diagnostics, ensuring reliable data transmission over extended distances, with a maximum cable length of 100 meters for copper and 32.5 kilometers for fiber optics. Built to meet stringent safety and environmental standards, this switch operates efficiently in a range of temperatures and is equipped with multiple alarm functions to monitor power supply, data link status, and other critical parameters. With its compact design and flexible mounting options, this managed switch is an excellent choice for enhancing the performance and reliability of your industrial network.
Specifications
Communications & Management Attributes
- Alarm Function
- power supply fault, data link status, switch fault, temperature threshold, redundancy ring fault, incorrect configuration, external memory removed
- Communication Service
- TFTP, Quality of Service (QoS), port monitoring, port mirroring, address conflict detection
Communication Port ProtocolEthernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP, Modbus TCP, IEC 61850 MMS Server, OPC UA
Alarm Output1 voltfree contact 1 A
Physical Attributes
- Optic Fiber Length
- 32.5 km 9/125 µm
Complementary Attributes
- Integrated Connection Type
- duplex SC fiber optic, shielded RJ45 copper cable
- Maximum Number Of Switches In A Ring
- 50
- Us Rated Supply Voltage
- 12...24 V
Maximum Cable Distance Between Devices100 m copper cable
Maximum Number Of Switches In Cascadeunlimited
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Cybersecurity
- port hardening, IP-based port security, MAC-based port security, port-based access control, role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, audit trail, SNMP logging, pre-login banner, TACACS+
- Ethernet Service
- configuration via web server, VLAN, multicast filtering, data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
- Local Signalling
- 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for channel diagnostic
- Port Ethernet
- 100BASE-FX - 1 fiber optic, 10/100BASE-TX - 8 copper cable
- Transmission Support Medium
- single mode optical fiber fiber optic, twisted shielded pairs cable CAT 5E copper cable
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2003018EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2027
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Attenuation
- 0-16 dB 9/125 µm)
- Ethernet Cabling System
- TF switches
- Number Of Port
- 9
- Number Of Uplink Port
- 1 F/O single mode 100 Mbps
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon Networking
- Supply Voltage Limits
- 9.6-32 V DC SELV
- Warranty In Months
- 18
- Offer Owner Code
- 190786
- Height Nominal
- 142.8 mm
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Diagnostics Run Timesignal contact, self test, MAC notification, RSPAN, SFLOW
Function Availablesecurity status, alarms (Traps), system information, report
MarkingCE, cULus, RCM
RedundancyHiPER ring, RSTP, link aggregation, link backup, redundant network coupling, MRP, redundant coupling protocol, MSTP
Certificate AgencyCE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, CE, UL, RCM, DNV, ATEX, EAC, UKCA, CSA C22-2 No 213, UKEX, FCC part 15 class A, CCC Ex
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeNetworking and Cable Solutions - Networking Devices
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electrical Connectionremovable connector 6 ways power supply
Mounting Support35 mm symmetrical DIN rail
Number Of Rj45 Port8 10/100 Mbps
Power Consumption In W7 W
Product Or Component TypeEthernet TCP/IP managed switch
ReturnabilityNo
Sustainable PackagingNo
Pep CodeENVPEP2003018EN
Pn1
Width Nominal73 mm
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2003018EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2003018EN
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation0-60 °C
Environmental DisclosureENVPEP2003018EN
Ip Degree Of ProtectionIP30
Packaging Without Single Use PlasticNo
Relative Humidity1-95 % non-condensing
General Attributes
- Product Or Component Type
- Ethernet TCP/IP managed switch
Range Of ProductModicon Networking
ETIM
- ETIM 8
- EC000734
ETIM 9EC000734
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Brazil, Germany, France, United States
Depth117.6 mm
