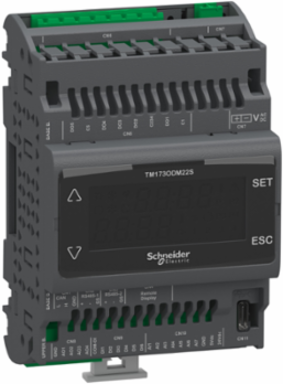

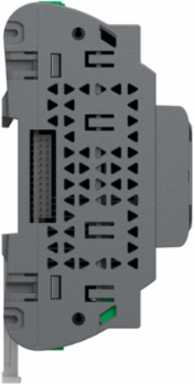

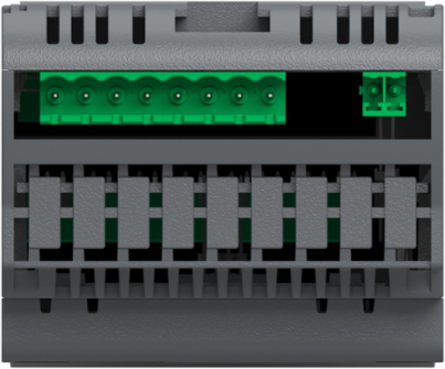

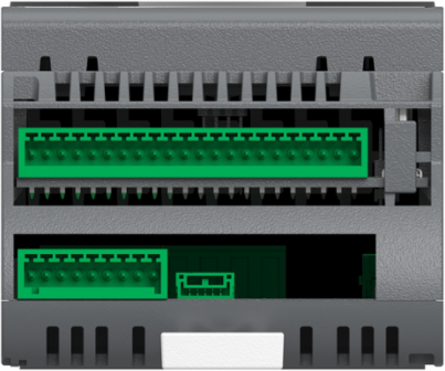

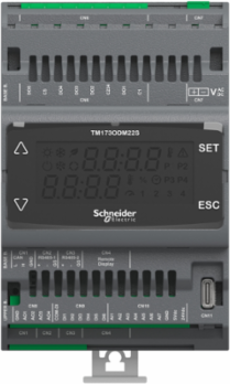

Schneider Electric TM173ODM22S Controller, Modicon M171/M172/M173, optimized display, 22 IO, 2 RS485, solid state relay
- MPN: TM173ODM22S
- PPN: SCH-TM173ODM22S
CAD
$322.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

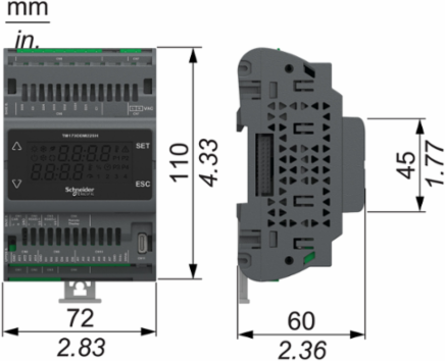

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This controller figures 6 digital inputs, 7 analog inputs, 5 digital outputs, 4 analog outputs, and a display. This programmable controller embeds 2 communication ports for RS485 and one CAN expansion bus port. It is a programmable logic controller for HVAC and Pumping applications, equiped with a LCD display. DIs are volt-free, pulse reading (up to 2kHz), and AIs are NTC (b3435 - 10kW), PT1000, 0-10V, 4-20mA, 5V, 10V, and DIs. Dos are relay 3A SPST with the same common, SSR 110/240 Vac and 24Vac, and AOs are 0-10V/4-20mA, 0-10 V/PWM (10Hz...2kHz). It measures 72mm wide, 60mm deep, 110mm high, and weighs 0.178kg. This controller is designed for HVAC and pumping applications. It is certified by CE, CURus, CSA, RCM and EAC. It is compatible with IO expansion modules and Secure Interfaces It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, Italy, Philippines
Depth60 mm
Important Information Attributes
- Measurement Accuracy
- NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °CNTC NK103 Beta 3977 110...137 °C +/- 1.9 °CNTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C, PTC - 55...155 °C +/- 1.1 °C, Pt 1000 - 100...-50 °C +/- 5 °C, Pt 1000 - 50...100 °C +/- 1 °C, Pt 1000 100…400 °C +/- 5 °C, 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit0...20 mA, 4...20 mA +/- 1 % of full scale +/- 1 digit, 0...10 V +/- 1 % of full scale +/- 1 digit, 0...5 V +/- 1 % of full scale +/- 1 digit, hOhm 0...1500 hOhm +/- 8.5 hOhm, daOhm 0...300 daOhm +/- 2.5 daOhm
- Number Of Port
- 1 CAN port - screw terminal block, 1 USB type C, 2 RS485 - screw terminal block Modbus serial link)1 display port - TTL connector, 1 communication module port
- Carbon Footprint Of The Distribution Phase [A4]
- 0.08194769177743627, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.004941476441921919
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 238 kg CO2 eq., 238.3411809507395
- Local Publishable Date
- 2026-01-12
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2310029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2404
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Contacts Usage
- volt-free contacts
- Local Signalling
- 1 LED (green) for USB pendrive download status
- Overvoltage Category
- II
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Specific Application
- HVAC and pumping solution
- Realtime Clock
- built-in clock, clock drift <= 30 s/month at -20-65 °C
- Sensor Power Supply
- 5-5 V DC 50 mA supplied by the controller24-24 V DC 125 mA supplied by the controller
- Sustainable Packaging
- No
- Updatability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control HVAC/R applications, like chiller, heat pump or pumping station with up to 2 circuits and 4 compressors thanks to the integrated valve driver and 22 programmable IOs, and a 100% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 525.6
- Energy Model - Installation [A5]
- Electricity origin
- Energy Model - End Of Life [C1-c4]
- Electricity origin
- Width Nominal
- 72 mm
- Input/Output Number
- 6 digital input5 digital output7 analog input4 analog output
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8537109160

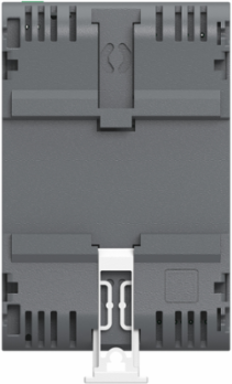

Mounting Supportpanel mounting with accessory, DIN rail
Certificate AgencyEAC (pending), CE, cURus, CSA, RCM (pending)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6749566772376119, 0.7 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]23 kg CO2 eq., 22.999013294125632
Local Data StatusPublishable
Pre Comm Date2023-11-08
Stocking FlagN
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Display TypeLED
Memory Type1 MB flash380 kB RAM
Power Consumption In W10 W 24 V AC/DC
Product Or Component Typeprogrammable controllers
Range Of ProductModicon M171/M172/M173
ReturnabilityYes
Software Versionv6.2.2
Total Lifecycle Carbon Footprint262 kg CO2 eq.
UpgradeabilityYes
Pep CodeENVPEP2310029_V3
Pep Verification Date2024-10-10
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Italy, IT
Energy Model - Use [B6]Electricity origin
Height Nominal110 mm
[Us] Rated Supply Voltage24 V +/- 10 % AC20...38 V DC
Number Of Inputs/Outputs22
Package Weight(Lbs)273.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-65 °C UL 60730-1, -20-65 °C UL 60730-1-20-65 °C UL 60730-1, -20-65 °C UL 60730-1, EN 60730-1, EN 60730-2-9
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2310029EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % non-condensing
- Pep Verification Date
- 2024-10-10
- Psr Version
- No PSR
Ambient Air Temperature For Storage-30-70 °C, -30-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint262.1020400903221
Environmental DisclosureENVPEP2310029_V3
Ip Degree Of ProtectionIP20 conforming to EN/IEC 60730
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2310029_V3
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- programmable controllers
- Upgradeability
- Yes
Range Of ProductModicon M171/M172/M173
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Analogue Output Number
- 1 voltage/current 0…10 V or 4…20 mA, 3 voltage 0...10 V or PWM (10Hz...2 kHz)
- Discrete Output Current
- 3 A relay SPST0.5 A solid state, isolated
Discrete Output Number3 relay outputs SPST with same common, 2 solid state, isolated SPST with independent common
Input Attributes
- Analogue Input Type
- NTC 103AT-2 Beta 3435 temperature probe - 50...100 °C 0.1 °C 10 kOhm, Pt 1000 temperature probe - 50...400 °C 0.1 °C 2 kOhmvoltage 0...10 V 0.001 V > 10 kOhmvoltage 0...5 V 0.001 V 110 kOhmcurrent 4...20 mA 13 bits 100 Ohm, direct input > 10 kOhm
- Discrete Input Current
- 2.5 mA
- Discrete Input Number
- 6
- Input Impedance
- 20 kOhm
Analogue Input Number6 configurable by pair1 configurable
Discrete Input Logicsink or source (positive/negative)
Discrete Input Voltage24 V AC/DC
