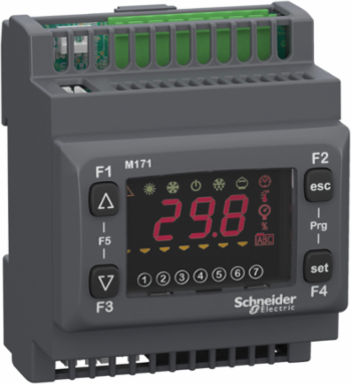

Schneider Electric TM171ODM22S Modicon M171 Controller 22 I/O, IP20, 4W Power, Built-in Clock
- MPN: TM171ODM22S
- PPN: SCH-TM171ODM22S
- UNSPSC: 32151705
CAD
$312.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Modicon M171 Controller from Schneider Electric is engineered for efficient and reliable automation in control applications, featuring 22 I/O ports for versatile connectivity. With an IP20 rating, it is designed for use in environments where protection from solid objects is necessary, ensuring its integrity in various industrial settings. The controller includes four wattages and is equipped with six LED indicators that provide instant feedback about its operational status. Ideal for applications requiring robust performance and compact control solutions, this device stands out in the automation and control categories, making it a valuable addition to any panel builder's toolkit.
Features
- Modicon M171/M172/M173 logic controllers help to maximize profitability/energy efficiency
- Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert - HVAC
- All of the features and functions you need to design and build machines more profitably are already embedded
- Application Function Blocks reduce energy consumption and help to improve system efficiency
- Stay connected everywhere with multiple BMS connectivity and web server embedded
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|---|
| Depth | 76 mm |
| Weight | 300 g |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 12...24 V +/- 10 % AC24 V +/- 10 % DC |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Local Signalling | 6 LEDs (red)5 LEDs (green), 7 LEDs (amber) for programmable |
| Certificate Agency | CSA, CE, cURus, EAC |
| Carbon Footprint Of The Distribution Phase A4 | 0.1115051918043258, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.004696289541949586, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 166 kg CO2 eq., 165.7967990445545 |
| Local Publishable Date | 2026-01-12 |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Contacts Usage | volt-free contacts |
| Mounting Support | flush mounting |
| Power Consumption In W | 4 W |
| Product Or Component Type | controller |
| Range Of Product | Modicon M171/M172 |
| Returnability | No |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 177 kg CO2 eq. |
| Upgradeability | Yes |
| Database Version | 2024-01 |
| Height Nominal | 32 mm |
| Number Of Inputs/Outputs | 22 |
| Customs Code | 8537109160 |
| Packaging Weight In G | 124.5 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Number Of Port | 1 LAN expansion bus, 1 RS485 - screw terminal block Modbus serial link) |
| Input/Output Number | 5 analog output6 digital input, 5 analog input, 6 digital output |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.5 kg CO2 eq., 0.5216254315182522 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 10 kg CO2 eq., 10.41812723959728 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1710004EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Display Type | four 7-segment display units |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | HVAC and pumping solution |
| Realtime Clock | built-in clock at -20-55 °C |
| Sensor Power Supply | 12-12 V DC 85 mA5-5 V DC 20 mA |
| Sustainable Packaging | Yes |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 74 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | To control simple and compact machines for HVAC applications (e.g. fans and water pumps) for a 100% of the time for 10 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 350.4 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-55 °C UL 60730-1, -20-55 °C UL 60730-1-20-55 °C UL 60730-1, -20-55 °C UL 60730-1 |
|---|---|
| Directives | 2006/95/EC - low voltage directive, 86/188/EEC - physical agents (noise) directive |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1710004EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2025-11-25 |
| Psr Version | No PSR |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 176.8527531970163 |
| Environmental Disclosure | ENVPEP1710004EN |
| Ip Degree Of Protection | IP20 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1710004EN |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | controller |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC000236 |
|---|---|
| ETIM 10 | EC000236 |
| ETIM 9 | EC000236 |
|---|
Output Attributes
| Analogue Output Number | 3 voltage 0...10 V, 1 PWM/PPM 20 kHz, 12 V, 35 mA, 2 triac 3 A |
|---|---|
| Discrete Output Number | 1 open collector3 relay outputs SPST with same common2 solid state SSR with independent common |
| Discrete Output Current | 2 A relay, 2 A triac |
|---|
Input Attributes
| Analogue Input Type | voltage 0...5 V ratiometric), voltage 0...10 VNTC temperature probe - 50...100 °C 0.1 °Ccurrent 0...20 mA/4...20 mA, voltage 0...1 V |
|---|---|
| Discrete Input Logic | sink or source (positive/negative) |
| Analogue Input Number | 2 configurable3 analog input NTC |
|---|---|
| Discrete Input Number | 6 |
