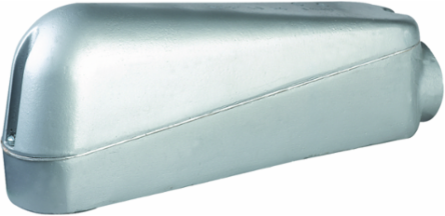

Killark MOLB-6CG Aluminum Mogul Conduit Body 2 Inch, Volume 100 Cubic Inches, 15 In x 3 In x 6 In
- MPN: MOLB-6CG
- UPC: 783936410197
- PPN: HBL-MOLB-6CG
- UNSPSC: 39131708
CAD
$555.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
MOL Series - Aluminum Mogul Conduit Body With Split Cover And Gasket -Conduit Size 2 Inch - Volume 100.0 Cubic Inches
Features
- A raised dome cover permits additional wiring room
- Furnished with captive ss screws and gasket
- LBD, C and UB Series available with builtin cable-pulling rollers on sizes 1-1/2” and larger. Add -WR to catalog number. Example MOLBD-5-WR.
- A raised dome cover provides additional wiring room. Furnished with cover and gasket. Volume is 100 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 6 in
- Length
- 15 in
- Type
- Mogul Conduit Body With Cover & Gasket
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 3
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2
- Master Pack Description
- Each
Dimensions15 in x 3 in x 6 in
ApplicationMogul fittings are normally used where the standard "O" Series conduit bodies do not offer a sufficient amount of wiring room. For right angle bends where splices, pulls, and taps are needed in a weather-proof chamber.
FinishPowder Epoxy Paint
Hub Size2"
Special FeaturesA raised dome cover provides additional wiring room. Furnished with cover and gasket. Volume is 100 cu. in.
Width3 in
ARRA CompliantContact Manufacturer
Description - Invoice2" MOLB W/COVER & GASKET
Harmonization Code7609000000
Lead Time21 wk
Order Multiple1 EA
Sub Class CodeD30D230
Hub PatternLB
SeriesMoguls Series
BOX SIZE6.000x15.000x3.000 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936410197
Item Package TypeK-PAK (cover & gasket included)
NAICS Code3359323110
Certifications
- EU RoHS Indicator
- Contact Manufacturer
