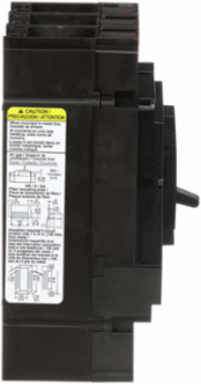

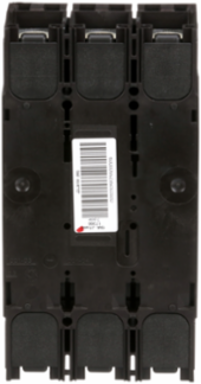

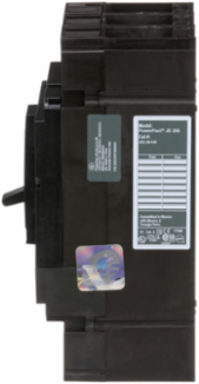

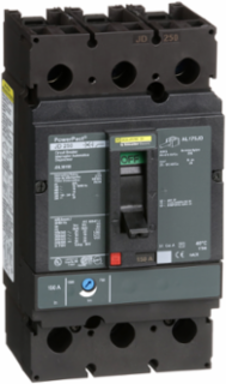

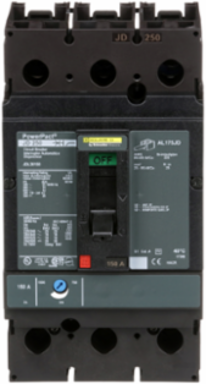

Square D JDL36150 PowerPact J Circuit Breaker 150A 3-Pole 600VAC Thermal-Magnetic 14kA
- MPN: JDL36150
- UPC: 785901955832
- PPN: SCH-JDL36150
CAD
$3468.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has lugs on both the line and load sides. This PowerPacT J, 150A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth86 mm
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Wire Stripping Length
- 25 mm
Complementary Attributes
- Line Rated Current
- 150-150 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, line, lugs, load
- Protection Type
- overload protection, short-circuit protection
- [Ics] Rated Service Breaking Capacity
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2, 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 14 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4 kg CO2 eq., 3.7919960685878635
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 13 kg CO2 eq., 12.522653095045856
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2206031_V2
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2539
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Control Type
- toggle
- Energy Efficiency Optimized
- False
- Magnetic Hold Current
- 750 A
- Mounting Mode
- unit mount lug)
- Network Frequency
- 50/60 Hz
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
- Software Version
- v6.2.4
- Sustainable Packaging
- No
- Tightening Torque
- 25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Trip Unit Technology
- thermal-magnetic
- Pep Code
- ENVPEP2206031EN
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- [A5]
- Energy Model - End Of Life [C1-c4]
- [C1 - C4]
- Height Nominal
- 191 mm
- [Ue] Rated Operational Voltage
- 600 V AC 50/60 Hz IEC 60947-3
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Number Of Slots2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)
Certificate AgencyUL, CSA, NOM
Carbon Footprint Of The Distribution Phase [A4]0.6424194185185502, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00946042248328017, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]380 kg CO2 eq., 379.83524216979896
Local Publishable Date2026-03-25
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg GaugeAWG 4...AWG 4/0 aluminium/copper terminal
Continuous Current Rating80 %
Device Applicationdistribution
Local Signallingswitched off (OFF) 1 trip indicator green)
Magnetic Tripping Current1750-1750 A
Mounting Supportlug
Number Of Poles3P
Product NamePowerPact J
Quality LabelsCE
ReturnabilityYes
Suitability For Isolationyes IEC 60947-2
Terminal IdentifierAL175JD
Total Lifecycle Carbon Footprint397 kg CO2 eq.
Utilisation Categorycategory A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %51
Width Nominal104 mm
[Ui] Rated Insulation Voltage750 V IEC 60947-2
Long Time Pick-up Adjustment Range0.25...1 x In
Package Weight(Lbs)2.200 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206031_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
Recycled Metal Content At Cr Level0 %
Carbon Footprint396.8017711744345
Environmental DisclosureENVPEP2206031EN
Ip Degree Of Protectionfront cover IP40
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206031EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
