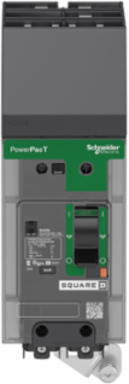

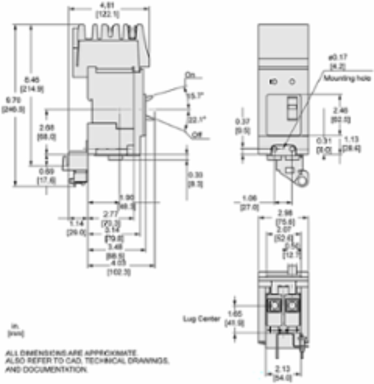

Square D BGA24020Y1 PowerPacT B Circuit Breaker, 20A 2-Pole, 480Y/277VAC, 35kA
Square D BGA24020Y1 PowerPacT B Circuit Breaker, 20A 2-Pole, 480Y/277VAC, 35kA
- MPN: BGA24020Y1
- PPN: SCH-BGA24020Y1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1598.20/ EA
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 35kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 20A, 2 pole, circuit breaker has a breaking capacity of 35kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Specifications
Physical Attributes
- Color
- Gray RAL 7016)
Wire Stripping Length20 mm
Complementary Attributes
- Ics Rated Service Breaking Capacity
- 65 kA 220...240 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2
- Ue Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- Uimp Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
Line Rated Current20-20 A
Ui Rated Insulation Voltage800 V IEC 60947-2
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- I-Line connection, line, lugs, load
- Tightening Torque
- 3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10), 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
- Carbon Footprint Of The Distribution Phase A4
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.3722232514555899, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 116 kg CO2 eq., 116.28294817324564
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- AWG 14...AWG 2/0 aluminium/copper
- Connection Pitch
- 27 mm
- Control Type
- toggle
- Device Short Name
- BG 020
- Energy Efficiency Optimized
- False
- Local Signalling
- presence of auxiliary contacts flag green)
- Mounting Mode
- I-Line
- Phase Connection
- AB
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Quantity Per Set
- set of 1
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-2
- Total Lifecycle Carbon Footprint
- 126 kg CO2 eq.
- Utilisation Category
- category A
- Pep Code
- ENVPEP2311047EN
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Reference Lifetime In Y2
- 20
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In 2
- 55
- Pn
- 1
- Width Nominal
- 54 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Number Of Slots1 auxiliary switch OF plug-in), 1 voltage release MN or MX plug-in)
Ics Rated Service Breaking Capacity65 kA 220...240 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The End Of Life Phase C1 To C42 kg CO2 eq., 2.1727930071093042
Carbon Footprint Of The Manufacturing Phase A1 To A37 kg CO2 eq., 6.828229406011014
Certificate AgencyUL, IEC, CCC, EAC, CSA, NOM
Local Publishable Date2025-11-13
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1909
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Continuous Current Rating80 %
Device Applicationdistribution
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Halogen Free StatusHalogen free product
Mechanical Durability20000 cycles IEC 947-1 Annex K ed 5.2
Network Frequency50/60 Hz
Poles Description2P
Product NamePowerPact B
Quality LabelsCE
RangePowerPact
Software Versionv6.2.5-6
Sustainable PackagingYes
Trip Unit Technologythermal-magnetic
Warranty In Months18
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh241.776
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Offer Owner Code190788
Height Nominal137 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 125.65619383782155
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Disclosure
- ENVPEP2311047EN
- Halogen Content Performance
- Halogen free product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
Halogene PerformanceHalogen free product
Mercury FreeYes
9 Mm Pitches6
Ambient Air Temperature For Storage-50-85 °C
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of Protectionfront cover IP40 IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2311047EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Specifications
- Country of Origin
- Mexico
Depth89 mm
