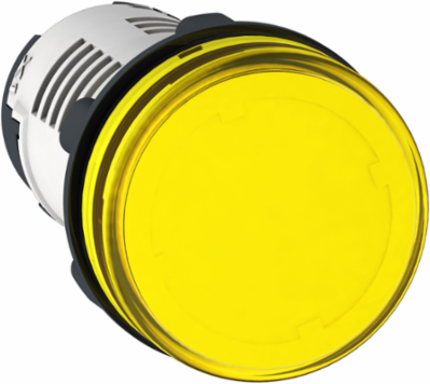

Schneider Electric XB7EV05MP Harmony XB7 Yellow Monolithic Pilot Light 22mm IP65 230V AC

  • MPN: XB7EV05MP
  • PPN: SCH-XB7EV05MP
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $102.45

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XB7, plain lens monolithic yellow pilot light is supplied with 230V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, Indonesia, United States
    Depth54 mm

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Fixing Center>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
    Certificate AgencyCSA C22.2 No 14, JIS C8201-5-1, IEC 60947-1, UL 508, IEC 60947-5-1, JIS C8201-1
    Terminals Description Iso N°1(X1-X2)PL, (X1-X2)PL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0486834788
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.3606002493
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Compatibility CodeXB7
    Device Short NameXB7
    Fixing Modefixing nut beneath head 2-2.4 N.m
    Mounting Diameter22 mm
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTH
    ReturnabilityYes
    Service Life70000 h at rated voltage and 25 °C
    Shock Resistance50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Software Versionv5.9.4
    Sustainable PackagingNo
    Total Lifecycle Carbon Footprint3 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionXB7 monolithic green pilot light uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel.
    Energy Consumption On Product Lifetime In Kwh4.0296
    Recyclability Potential In %15
    Width Nominal29 mm
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
    Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
    Package Weight(Lbs)19.000 g
    Warranty (In Months)18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Shape Of Screw Headcross JIS No 1, cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    [Us] Rated Supply Voltage230...240 V, 230...240 V AC 50/60 Hz
    Carbon Footprint Of The Distribution Phase [A4]0.0026153035, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.000069488, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 kg CO2 eq., 2.6024598983
    Local Publishable Date2026-02-26
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2312030EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Bulb Baseintegral LED
    Current Consumption16...20 mA
    Electromagnetic Compatibilitydisturbing field emission class B conforming to IEC 55011
    Light SourceLED
    Overvoltage Categoryclass II conforming to IEC 60536
    Product Or Component Typepilot light
    Range Of ProductHarmony XB7
    Sale Per Indivisible Quantity10
    Shape Of Signaling Unit Headround
    Signalling Typesteady
    Supply Voltage Limits195-264 V AC
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Pep CodeENVPEP2312030EN
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; ID
    Height Nominal29 mm
    [Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
    Cap/Operator Or Lens Colouryellow
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8531809051

    Environment Attributes Main

    Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
    Nema Degree Of ProtectionUL type 4/12NEMA 4 UL 50 E, NEMA 12 UL 50 E
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2312030EN
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Pep CodeENVPEP2312030EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint3.0144284178
    Environmental DisclosureENVPEP2312030EN
    Ip Degree Of ProtectionIP20 IEC 60529 rear face)IP65 IEC 60529 front face)
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-12-07
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typepilot light
    Range Of ProductHarmony XB7

    ETIM

    ETIM 8EC000272
    ETIM 9EC000272

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Overview Attributes

    Device Presentationmonolithic product

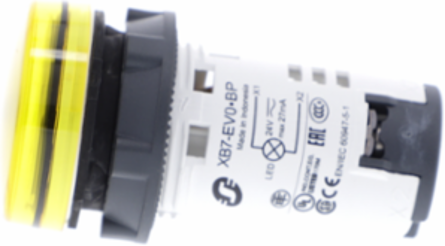

    Harmony XB7 Yellow Monolithic Pilot Light 22mm IP65 230V AC

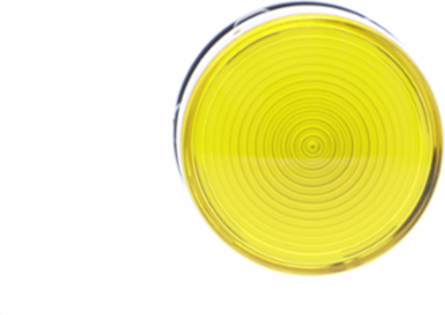

    Harmony XB7 Yellow Monolithic Pilot Light 22mm IP65 230V AC

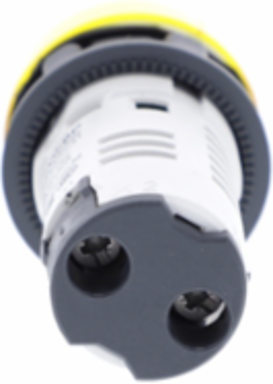

    Harmony XB7 Yellow Monolithic Pilot Light 22mm IP65 230V AC

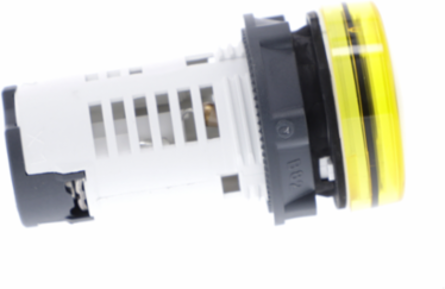

    Harmony XB7 Yellow Monolithic Pilot Light 22mm IP65 230V AC
    Harmony XB7 Yellow Monolithic Pilot Light 22mm IP65 230V AC
