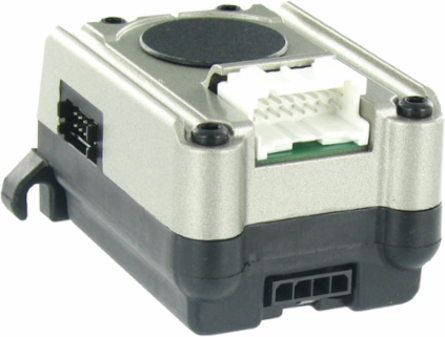

Schneider Electric SD218AU20C Motion Control Stepper Motor Drive, 3 A, CANopen, 24-48 V, 45 mm Width
- MPN: SD218AU20C
- PPN: SCH-SD218AU20C
CAD
$1319.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric SD218AU20C Motion Control Stepper Motor Drive is expertly designed for precision in automation and control applications. Capable of handling currents up to 3 A and operating within a voltage range of 24-48 V, this drive integrates seamlessly into various systems, enhancing performance and reliability. Its compact 45 mm width allows for efficient space utilization, making it ideal for applications where size constraints are a consideration. With CANopen communication support, this stepper motor drive offers flexibility and ease of integration into existing setups, catering to the needs of modern motion control projects.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Lexium SD2
- Communication Interface
- CANopen
Product Or Component Typemotion stepper drive
Device Short NameSD218
Complementary
- Electrical Connection
- 1 connector wire crimp 4 pins motor interface || 1 connector wire crimp 16 pins supply voltage and multifunction interface || 1 connector DB9 fieldbus for CANopen interface
- Height
- 33 mm
- Supply Voltage Type
- DC
- Marking
- CE
- Residual Ripple
- 2 V at nominal voltage
- Net Weight
- 0.08 kg
- Voltage State 1 Guaranteed
- 2.2...24 V
- Supply Voltage Limits
- 12-48 V
- Type Of Cooling
- conduction || convection
- Depth
- 59 mm
[Us] Rated Supply Voltage24...48 V
Maximum Motor Phase Current3 A
Input Current1.75 mA - high level general purpose I/O defined as inputs
Current Consumption<= 3.2 mA
Network Number Of Phasessingle phase
Voltage State 0 Guaranteed0...0.8 V general purpose I/O defined as inputs
Output Current600 mA - single channel, duty cycle = 0.8 general purpose I/O defined as inputs || 275 mA - four channels, continuous general purpose I/O defined as inputs
Transmission Rate10, 20, 50, 100, 125, 250, 800, 1000 kbauds
Width45 mm
Input Voltage0...24 V general purpose I/O defined as inputs
Environment
- Standards
- EN 55011 group 1 class A || EN 61000-3-3 || IEC 61000-3-2
- Ambient Air Temperature For Operation
- 0-50 °C without derating with flange motor mounted on a steel plate 300 x 300 x 10 mm || 50-65 °C with power derating of 2.2 % per °C with flange motor mounted on a steel plate 300 x 300 x 10 mm
- Relative Humidity
- 15-85 % without condensation
- Operating Altitude
- <= 1000 m without derating
Electromagnetic Compatibilityelectrostatic discharge IEC 61000-4-2 || immunity to radiated radio-electrical interference IEC 61000-4-3 || immunity to electrical transients IEC 61000-4-4 || voltage/current impulse IEC 61000-4-5 || immunity to voltage dips IEC 61000-4-11 || immunity to conducted RF disturbances IEC 61000-4-6
Ambient Air Temperature For Storage-25-70 °C
Ip Degree Of ProtectionIP20
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Pvc Free
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Accessories
