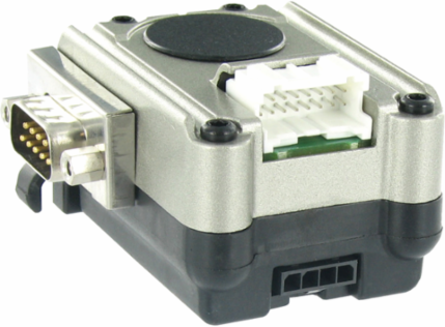

Schneider Electric SD218PU20C Motion Control Stepper Motor Drive, 3 A, RS485, 0.08 kg, 45 mm Width
- MPN: SD218PU20C
- PPN: SCH-SD218PU20C
CAD
$1443.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for precision and reliability, this motion control stepper motor drive from Schneider Electric offers seamless integration into automated systems. Featuring an RS485 communication interface, it enables efficient data transfer and control with a current rating of 3 A. Compactly designed with a width of just 45 mm, it makes an excellent choice for applications where space is at a premium. This drive is a crucial component for those looking to enhance their motion control solutions with robust performance and advanced functionality.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Lexium SD2
- Device Short Name
- SD218
Product Or Component Typemotion stepper drive
Communication InterfaceRS485
Complementary
- Electrical Connection
- 1 connector wire crimp 4 pins motor interface || 1 connector wire crimp 16 pins supply voltage and multifunction interface || 1 connector wire crimp 10 pins communication interface
- Voltage State 1 Guaranteed
- 2.2...24 V
- Height
- 33 mm
- Transmission Rate
- 4.8, 9.6, 19.2, 38.4, 115 kbauds
- Maximum Motor Phase Current
- 3 A
- Input Current
- 1.75 mA - high level general purpose I/O defined as inputs
- Width
- 45 mm
- Current Consumption
- <= 3.2 mA
- Network Number Of Phases
- single phase
- Voltage State 0 Guaranteed
- 0...0.8 V general purpose I/O defined as inputs
[Us] Rated Supply Voltage24...48 V
Output Current600 mA - single channel, duty cycle = 0.8 general purpose I/O defined as outputs || 275 mA - four channels, continuous general purpose I/O defined as outputs
Supply Voltage Limits12-48 V
Type Of Coolingconvection || conduction
Supply Voltage TypeDC
MarkingCE
Depth59 mm
Residual Ripple2 V at nominal voltage
Net Weight0.08 kg
Input Voltage0...24 V general purpose I/O defined as inputs || 0...24 V general purpose I/O defined as outputs
Environment
- Ambient Air Temperature For Storage
- -25-70 °C
- Relative Humidity
- 15-85 % without condensation
- Operating Altitude
- <= 1000 m without derating
- Ambient Air Temperature For Operation
- 0-50 °C without derating with flange motor mounted on a steel plate 300 x 300 x 10 mm || 50-65 °C with power derating of 2.2 % per °C with flange motor mounted on a steel plate 300 x 300 x 10 mm
StandardsIEC 61000-3-2 || EN 61000-3-3 || EN 55011 group 1 class A
Ip Degree Of ProtectionIP20
Electromagnetic Compatibilityelectrostatic discharge IEC 61000-4-2 || immunity to radiated radio-electrical interference IEC 61000-4-3 || immunity to electrical transients IEC 61000-4-4 || voltage/current impulse IEC 61000-4-5 || immunity to voltage dips IEC 61000-4-11 || immunity to conducted RF disturbances IEC 61000-4-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Reach Free Of SvhcYes
