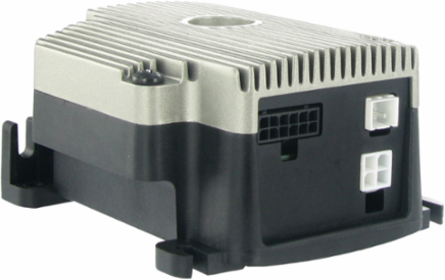

Schneider Electric SD215DU50C Motion Control Stepper Motor Drive, 5A, Pulse/Direction, 76mm Width, 99mm Depth
- MPN: SD215DU50C
- PPN: SCH-SD215DU50C
CAD
$1162.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric's motion control stepper motor drive stands out with its reliable performance and compact design, featuring a width of just 76mm and a depth of 99mm. With a maximum current rating of 5A, it is adept at managing precision movement for a variety of automation tasks. This drive operates using a pulse/direction control strategy, making it highly versatile for use in diverse applications within the motion control category. Ideal for integration into automation and control systems, it enhances efficiency and precision in operational settings.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Lexium SD2
- Device Short Name
- SD215
Product Or Component Typemotion stepper drive
Communication Interfacepulse/direction
Complementary
- Electrical Connection
- 1 connector wire crimp 4 pins motor interface || 1 connector wire crimp 12 pins multifunction and communication interface || 1 connector wire crimp 2 pins supply voltage || 1 connector
- Output Current
- 14.6 mA step clock || 8 mA - high level SPI interfaces || -7 mA - low level SPI interfaces
- Supply Voltage Limits
- 12-48 V
- Output Voltage
- 2.1 V high level SPI interfaces) || 0.5 V low level SPI interfaces) || 5...24 V high level isolated inputs: step clock, direction, enable) || 8.7 V low level isolated inputs: step clock, direction, enable)
- Supply Voltage Type
- DC
- Marking
- CE
- Depth
- 99 mm
- Residual Ripple
- 2 V at nominal voltage
- Net Weight
- 0.34 kg
[Us] Rated Supply Voltage24...48 V
Height54 mm
Type Of Coolingconvection
Maximum Motor Phase Current5 A
Input Current10 µA - high level SPI interfaces || -10 µA - low level SPI interfaces
Width76 mm
Current Consumption<= 4 mA
Network Number Of Phasessingle phase
Input Voltage2 V - high level SPI interfaces signal inputs || 1.2 V - low level SPI interfaces signal inputs
Environment
- Ambient Air Temperature For Storage
- -25-70 °C
- Relative Humidity
- 15-85 % without condensation
- Operating Altitude
- <= 1000 m without derating
- Ambient Air Temperature For Operation
- 0-50 °C without derating with flange motor mounted on a steel plate 300 x 300 x 10 mm || 50-65 °C with power derating of 2.2 % per °C with flange motor mounted on a steel plate 300 x 300 x 10 mm
StandardsEN 55011 group 1 class A || EN 61000-3-3 || IEC 61000-3-2
Ip Degree Of ProtectionIP20
Electromagnetic Compatibilityelectrostatic discharge IEC 61000-4-2 || immunity to radiated radio-electrical interference IEC 61000-4-3 || immunity to electrical transients IEC 61000-4-4 || voltage/current impulse IEC 61000-4-5 || immunity to voltage dips IEC 61000-4-11 || immunity to conducted RF disturbances IEC 61000-4-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
