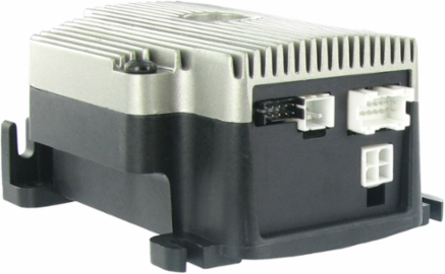

Schneider Electric SD218AU50C Motion Control Stepper Motor Drive 5A, 76mm Width, 0.34kg Weight
- MPN: SD218AU50C
- PPN: SCH-SD218AU50C
CAD
$1731.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric SD218AU50C Motion Control Stepper Motor Drive is engineered for precision and reliability in automated systems. With a compact width of 76mm and a robust output of 5A, it is designed to efficiently manage motion control applications, ensuring smooth operation and enhanced performance. Weighing only 0.34kg, this stepper motor drive is ideal for integration into various equipment, making it a suitable choice for engineers seeking reliable solutions in automation and control technologies.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Lexium SD2
- Device Short Name
- SD218
Product Or Component Typemotion stepper drive
Communication InterfaceCANopen
Complementary
- Electrical Connection
- 1 connector wire crimp 4 pins motor interface || 1 connector wire crimp 2 pins supply voltage || 1 connector DB9 fieldbus for CANopen interface || 1 connector wire crimp 14 pins multifunction interface
- Voltage State 1 Guaranteed
- 2.2...24 V
- Height
- 54 mm
- Transmission Rate
- 10, 20, 50, 100, 125, 250, 800, 1000 kbauds
- Maximum Motor Phase Current
- 5 A
- Input Current
- 1.75 mA - high level general purpose I/O defined as inputs
- Width
- 76 mm
- Current Consumption
- <= 4 mA
- Network Number Of Phases
- single phase
- Voltage State 0 Guaranteed
- 0...0.8 V general purpose I/O defined as inputs
[Us] Rated Supply Voltage24...48 V
Output Current600 mA - single channel, duty cycle = 0.8 general purpose I/O defined as outputs || 275 mA - four channels, continuous general purpose I/O defined as outputs
Supply Voltage Limits12-48 V
Type Of Coolingconvection
Supply Voltage TypeDC
MarkingCE
Depth99 mm
Residual Ripple2 V at nominal voltage
Net Weight0.34 kg
Input Voltage0...24 V general purpose I/O defined as inputs
Environment
- Ambient Air Temperature For Storage
- -25-70 °C
- Relative Humidity
- 15-85 % without condensation
- Operating Altitude
- <= 1000 m without derating
- Ambient Air Temperature For Operation
- 0-50 °C without derating with flange motor mounted on a steel plate 300 x 300 x 10 mm || 50-65 °C with power derating of 2.2 % per °C with flange motor mounted on a steel plate 300 x 300 x 10 mm
StandardsEN 55011 group 1 class A || IEC 61000-3-2 || EN 61000-3-3
Ip Degree Of ProtectionIP20
Electromagnetic Compatibilityelectrostatic discharge IEC 61000-4-2 || immunity to radiated radio-electrical interference IEC 61000-4-3 || immunity to electrical transients IEC 61000-4-4 || voltage/current impulse IEC 61000-4-5 || immunity to voltage dips IEC 61000-4-11 || immunity to conducted RF disturbances IEC 61000-4-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Mercury FreeYes
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Reach Free Of SvhcYes
