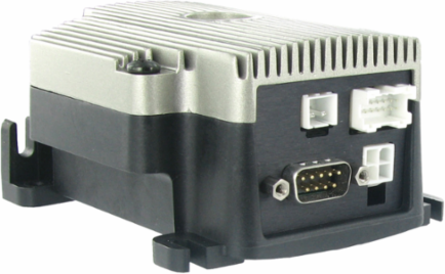

Schneider Electric SD218PU50C Stepper Motor Drive 5A, RS485, 76 mm Width, 0.34 kg Weight
- MPN: SD218PU50C
- PPN: SCH-SD218PU50C
CAD
$1855.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric Stepper Motor Drive is engineered to deliver precise control in automation and motion applications. With a current rating of 5A and featuring RS485 communication, it facilitates efficient integration into various systems, making it a versatile choice for modern motion control needs. Its compact design, measuring 76 mm in width, ensures that it can fit easily into confined spaces while still providing reliable performance, enhancing the operational capabilities of your equipment. This drive stands out in the realm of stepper motor drives, ensuring efficient operation and responsiveness in applications that demand accuracy and reliability.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Lexium SD2
- Device Short Name
- SD218
Product Or Component Typemotion stepper drive
Communication InterfaceRS485
Complementary
- Electrical Connection
- 1 connector wire crimp 4 pins motor interface || 1 connector wire crimp 2 pins supply voltage || 1 connector wire crimp 14 pins multifunction interface || 1 connector wire crimp 10 pins communication interface
- Voltage State 1 Guaranteed
- 2.2...24 V
- Height
- 54 mm
- Transmission Rate
- 4.8, 9.6, 19.2, 38.4, 115 kbauds
- Maximum Motor Phase Current
- 5 A
- Input Current
- 1.75 mA - high level general purpose I/O defined as inputs
- Width
- 76 mm
- Current Consumption
- <= 4 mA
- Network Number Of Phases
- single phase
- Voltage State 0 Guaranteed
- 0...0.8 V general purpose I/O defined as inputs
[Us] Rated Supply Voltage24...48 V
Output Current600 mA - single channel, duty cycle = 0.8 general purpose I/O defined as outputs || 275 mA - four channels, continuous general purpose I/O defined as outputs
Supply Voltage Limits12-48 V
Type Of Coolingconvection
Supply Voltage TypeDC
MarkingCE
Depth99 mm
Residual Ripple2 V at nominal voltage
Net Weight0.34 kg
Input Voltage0...24 V general purpose I/O defined as inputs || 0...24 V general purpose I/O defined as outputs
Environment
- Ambient Air Temperature For Storage
- -25-70 °C
- Relative Humidity
- 15-85 % without condensation
- Operating Altitude
- <= 1000 m without derating
- Ambient Air Temperature For Operation
- 0-50 °C without derating with flange motor mounted on a steel plate 300 x 300 x 10 mm || 50-65 °C with power derating of 2.2 % per °C with flange motor mounted on a steel plate 300 x 300 x 10 mm
StandardsEN 55011 group 1 class A || EN 61000-3-3 || IEC 61000-3-2
Ip Degree Of ProtectionIP20
Electromagnetic Compatibilityelectrostatic discharge IEC 61000-4-2 || immunity to radiated radio-electrical interference IEC 61000-4-3 || immunity to electrical transients IEC 61000-4-4 || voltage/current impulse IEC 61000-4-5 || immunity to voltage dips IEC 61000-4-11 || immunity to conducted RF disturbances IEC 61000-4-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
