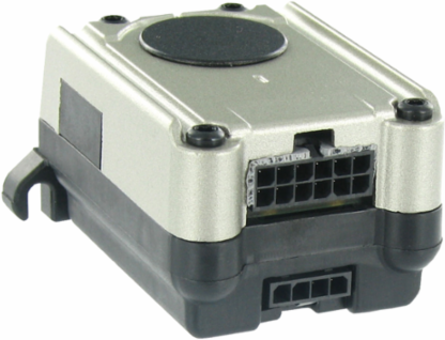

Schneider Electric SD215DU20C Motion Control Stepper Motor Drive, 3 A, 45 mm Width, 0.08 kg
- MPN: SD215DU20C
- PPN: SCH-SD215DU20C
CAD
$973.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This motion control stepper motor drive from Schneider Electric is a robust solution engineered to enhance precision in automated applications. Designed with a current rating of 3 A and a compact 45 mm width, it allows for seamless integration into various automation systems where space is at a premium. Weighing just 0.08 kg, this drive stands out in the realm of motion control, ensuring reliable performance for a wide range of industrial tasks. Whether you're developing intricate automation projects or seeking to upgrade existing systems, this stepper motor drive provides the efficiency and control necessary for optimal operation.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Lexium SD2
- Device Short Name
- SD215
Product Or Component Typemotion stepper drive
Communication Interfacepulse/direction
Complementary
- Electrical Connection
- 1 connector wire crimp 12 pins supply voltage multifunction and communication interface || 1 connector wire crimp 4 pins motor interface
- Output Current
- 14.6 mA step clock || 8 mA - high level SPI interfaces || -7 mA - low level SPI interfaces
- Supply Voltage Limits
- 12-48 V
- Output Voltage
- 2.1 V high level SPI interfaces) || 0.5 V low level SPI interfaces) || 5...24 V high level isolated inputs: step clock, direction, enable) || 8.7 V low level isolated inputs: step clock, direction, enable)
- Supply Voltage Type
- DC
- Marking
- CE
- Depth
- 59 mm
- Residual Ripple
- 2 V at nominal voltage
- Net Weight
- 0.08 kg
[Us] Rated Supply Voltage24...48 V
Height33 mm
Type Of Coolingconduction || convection
Maximum Motor Phase Current3 A
Input Current10 µA - high level SPI interfaces || -10 µA - low level SPI interfaces
Width45 mm
Current Consumption<= 3.2 mA
Network Number Of Phasessingle phase
Input Voltage2 V - high level SPI interfaces signal inputs || 1.2 V - low level SPI interfaces signal inputs
Environment
- Ambient Air Temperature For Storage
- -25-70 °C
- Relative Humidity
- 15-85 % without condensation
- Operating Altitude
- <= 1000 m without derating
- Ambient Air Temperature For Operation
- 0-50 °C without derating with flange motor mounted on a steel plate 300 x 300 x 10 mm || 50-65 °C with power derating of 2.2 % per °C with flange motor mounted on a steel plate 300 x 300 x 10 mm
StandardsIEC 61000-3-2 || EN 55011 group 1 class A || EN 61000-3-3
Ip Degree Of ProtectionIP20
Electromagnetic Compatibilityelectrostatic discharge IEC 61000-4-2 || immunity to radiated radio-electrical interference IEC 61000-4-3 || immunity to electrical transients IEC 61000-4-4 || voltage/current impulse IEC 61000-4-5 || immunity to voltage dips IEC 61000-4-11 || immunity to conducted RF disturbances IEC 61000-4-6
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
