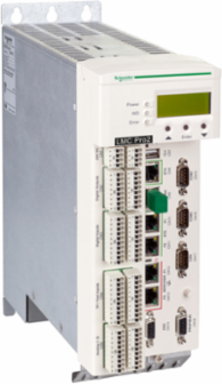

Schneider Electric LMC802CBD10000 Motion Controller 130 Axis, 24VDC, IP20, 3.5kg
- MPN: LMC802CBD10000
- PPN: SCH-LMC802CBD10000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 130 axis, 20 discrete inputs, 4 for interrupt input and 16 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 250mA and a power consumption of 36W. It is an IP20 rated product. Its dimensions are 100mm (width) x 243mm (depth) x 310mm (height). It weighs 3.5kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards. Motion controllers for automating machines/lines with 0 - 130 servo or robot axes. PacDrive 3 LMC controllers provide scalable performance for synchronizing up to 130 servo axes at 1msnetwork update rate and for up to 255 virtual axes.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth243 mm
Complementary Attributes
- Integrated Connection Type
- 2 Ethernet port RJ45 Sercos, 1 CAN port SUB-D 9 CANopen, 1 USB port USB type A, 2 Ethernet port RJ45 RT-Ethernet (real-time), 1 Ethernet port RJ45 PacNet, 1 port SUB-D 9 Profibus DP, 1 COM1 serial link SUB-D 9 RS232, 1 COM2 serial link SUB-D 9 RS422/RS485, 1 port SUB-D 9 master encoder, 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T, FTP/HTTP
Maximum Leakage Current0.4 mA
Important Information Attributes
- Persona Type Ids
- EU, OM
- Anti Bounce Filtering
- 1 ms or 5 ms configurable digital input, 100 µs touch probe input, 0.1 ms or 1 ms configurable interrupt input
- Programming Language
- CFC (continuous function chart), ST (structured text), IL (instruction list), SFC (sequential function chart), FBD (function block diagram), LD (ladder)
- Certificate Agency
- cULus, EAC, CE, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 1.4970845928
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 113 kg CO2 eq., 113.0816602752
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Use Carbon Footprint
- 2060.1
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1411004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 3
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Power Consumption In W
- 36 W
- Product Or Component Type
- Motion controller
- Returnability
- Yes
- Software Version
- EIME v5.6.0.1
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1411004EN
- Pep Verification Date
- 2020-10-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To perform motion control for applications 100% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 4204.8
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 100 mm
- Maximum Number Of I/O Expansion Module
- 2
- Package Weight(Lbs)
- 4.297 kg
- Warranty (In Months)
- 18
- Air Pollution (M3) Operational Energy Use [B6]
- 88668
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 2060.1
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 7469.7
- Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]
- 5.1298
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 41145
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 35913
- Water Pollution (M3) Operational Energy Use [B6]
- 85009
Persona Type NamesEnd User, Original Equipment Manufacturer
Memory Type256 kB NVRAM, 4 GB RAM DDR3L
Vibration Resistance3.5 mm 5-8.4 Hz, 10 m/s² 8.4-150 Hz
Carbon Footprint Of The Distribution Phase [A4]0.5651217686, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0554006271, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]2 060 kg CO2 eq., 2060.1
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - motion controller
TraceabilityYes
Average Life Duration15 year(s)
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Number Of Axis130
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPacDrive 3
Shock Resistance150 m/s² 6 ms operation)IEC 60721-3-3
Supplypower supply 24 VDC, <1 A
Total Lifecycle Carbon Footprint2 175 kg CO2 eq.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal310 mm
[Us] Rated Supply Voltage24 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]8.5934
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]23384
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]1.074
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]7681
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]35913
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]5232
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]5232
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 2175.2992672637
- Circularity Profile
- ENVEOLI1411004EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- LMC802
- Relative Humidity
- 5-95 % without condensation
- Pep Verification Date
- 2020-10-01
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation5-55 °C
Environmental DisclosureENVPEP1411004EN
Ip Degree Of ProtectionIP20IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1411004EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- Motion controller
Range Of ProductPacDrive 3
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Discrete Output Number
- 16 digital output, 2 analog output
Discrete Output Current250 mA digital output
Surge Protection And Filtering Attributes
- Anti Bounce Filtering
- 1 ms or 5 ms configurable digital input, 100 µs touch probe input, 0.1 ms or 1 ms configurable interrupt input
Input Attributes
- Analogue Input Type
- voltage analog input - 10...10 V, current analog input - 20...20 mA
- Discrete Input Number
- 20 digital input IEC 61131-2 Type 1, 4 interrupt input IEC 61131-2 Type 1, 16 touch probe input IEC 61131-2 Type 1
- Input Impedance
- 100000 Ohm analog input, 500 Ohm
- Analogue Input Resolution
- 12 bits
Discrete Input Current5 mA digital input, 5 mA interrupt input, 5 mA touch probe input
Discrete Input Voltage20...33 V, 0...6 V
Analogue Input Number2
Discrete Input Voltage TypeDC
