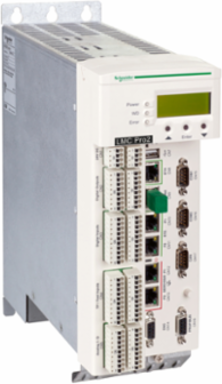

Schneider Electric LMC802CBC10000 Motion Controller 130 Axis, 36W Power, 3.5 kg Weight, IP20 Protection

  • MPN: LMC802CBC10000
  • PPN: SCH-LMC802CBC10000
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Schneider Electric LMC802CBC10000 Motion Controller stands out for its capacity to manage up to 130 axes, making it an exceptional choice for complex automation systems. With a power output of 36 watts, this controller is engineered to facilitate efficient and precise motion control in various applications within the automation and control sectors. Designed with IP20 protection, it ensures that internal components are safeguarded from dust ingress, enhancing reliability in operational environments. Weighing just 3.5 kg, it is easy to integrate into existing setups, proving to be a robust solution for modern PLC, HMI, and data acquisition needs.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginFrance
Depth243 mm

Complementary Attributes

Integrated Connection Type2 Ethernet port RJ45 Sercos1 CAN port SUB-D 9 CANopen1 USB port USB type A, 2 Ethernet port RJ45 RT-Ethernet (real-time), 1 Ethernet port RJ45 PacNet1 port SUB-D 9 Profibus DP1 COM1 serial link SUB-D 9 RS2321 COM2 serial link SUB-D 9 RS422/RS485, 1 port SUB-D 9 master encoder, 1 Ethernet port RJ45 Ethernet 10/100/1000BASE-T, FTP/HTTP
Maximum Leakage Current0.4 mA

Important Information Attributes

Persona Type IdsEU, OM
Programming LanguageLD (ladder), SFC (sequential function chart), FBD (function block diagram), IL (instruction list), CFC (continuous function chart), ST (structured text)
Carbon Footprint Of The Distribution Phase [A4]0.6102799007, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0598276179, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]2 060 kg CO2 eq., 2060.1
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - motion controller
TraceabilityYes
Average Life Duration15 year(s)
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier3
Function OptionAdvanced
Market SegmentationIndustrial
Anti Bounce Filtering1 ms or 5 ms configurable digital input100 µs touch probe input0.1 ms or 1 ms configurable interrupt input
Number Of Axis130
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductPacDrive 3
Shock Resistance150 m/s² 6 ms operation)IEC 60721-3-3
Supplypower supply 24 VDC, <1 A
Total Lifecycle Carbon Footprint2 185 kg CO2 eq.
Pep CodeENVPEP1411004EN
Pep Verification Date2020-10-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo perform motion control for applications 100% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh4204.8
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Width Nominal100 mm
Maximum Number Of I/O Expansion Module2
Package Weight(Lbs)4.73 kg
Warranty (In Months)18
Air Pollution (M3) Operational Energy Use [B6]88668
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]2060.1
Net Use Of Fresh Water (M3) Operational Energy Use [B6]7469.7
Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]5.1298
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]41145
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]35913
Water Pollution (M3) Operational Energy Use [B6]85009
Persona Type NamesEnd User, Original Equipment Manufacturer
Certificate AgencyCSA, cULus, CE, EAC
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.6167146402
Carbon Footprint Of The Manufacturing Phase [A1 To A3]122 kg CO2 eq., 122.117866005
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Use Carbon Footprint2060.1
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1411004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier Id3
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Memory Type256 kB NVRAM4 GB RAM DDR3L
Power Consumption In W36 W
Product Or Component TypeMotion controller
ReturnabilityYes
Software VersionEIME v5.6.0.1
Sustainable PackagingNo
Vibration Resistance3.5 mm 5-8.4 Hz10 m/s² 8.4-150 Hz
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Germany
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal310 mm
[Us] Rated Supply Voltage24 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]8.5934
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]23384
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]1.074
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]7681
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]35913
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]5232
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]5232
Customs Code8537109170

Environment Attributes Main

Take BackNo
China Rohs RegulationX
Carbon Footprint2184.5046881638
Circularity ProfileENVEOLI1411004EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Product CompatibilityLMC802
Relative Humidity5-95 % without condensation
Pep Verification Date2020-10-01
Type Of Verification For The PepIndependent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation5-55 °C
Environmental DisclosureENVPEP1411004EN
Ip Degree Of ProtectionIP20IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1411004EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Product Or Component TypeMotion controller
Range Of ProductPacDrive 3

ETIM

ETIM 8EC000236
ETIM 9EC000236

Output Attributes

Discrete Output Current250 mA digital output
Discrete Output Number16 digital output2 analog output

Surge Protection And Filtering Attributes

Anti Bounce Filtering1 ms or 5 ms configurable digital input100 µs touch probe input0.1 ms or 1 ms configurable interrupt input

Input Attributes

Discrete Input Current5 mA digital input, 5 mA interrupt input, 5 mA touch probe input
Input Impedance100000 Ohm analog input, 500 Ohm
Analogue Input Resolution12 bits
Discrete Input Number20 digital input IEC 61131-2 Type 14 interrupt input IEC 61131-2 Type 116 touch probe input IEC 61131-2 Type 1
Discrete Input Voltage20...33 V, 0...6 V
Analogue Input Number2
Analogue Input Typevoltage analog input - 10...10 Vcurrent analog input - 20...20 mA
Discrete Input Voltage TypeDC
