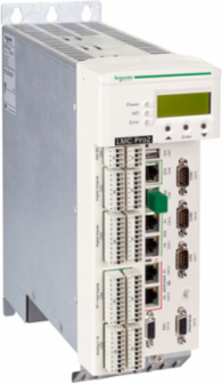

Schneider Electric LMC802CCA10000 Motion Controller 130 Axis, 24V DC, 3.5 kg, IP20
- MPN: LMC802CCA10000
- PPN: SCH-LMC802CCA10000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for optimal control in automated systems, this motion controller from Schneider Electric is designed to manage up to 130 axes, enhancing the performance and precision of your operations. Operating at a voltage of 24V DC, it offers reliable functionality suited for demanding applications within the realm of automation and control. With an IP20 rating, it is ideal for use in environments where it is protected from solid objects larger than 12mm, making it a robust choice for various industrial settings. The LMC802CCA10000 is an essential component for those seeking efficient and effective solutions in PLC, HMI, and data acquisition.
Documentation & Downloads
Specifications
Additional
- Voltage
- 24 V DC
- Power Consumption
- 36 W
- Discrete Input Number
- 20 digital input IEC 61131-2 Type 1, 4 interrupt input IEC 61131-2 Type 1, 16 touch probe input IEC 61131-2 Type 1
- Discrete Output Current
- 250 mA digital output
- Number of Axis
- 130
- Analogue Input Type
- Voltage analog input -10...10 V, Current analog input -20...20 mA
- Discrete Input Current
- 5 mA digital input, 5 mA interrupt input, 5 mA touch probe input
- Anti Bounce Filtering
- 1 ms or 5 ms configurable digital input, 100 μs touch probe input, 0.1 ms or 1 ms configurable interrupt input
- Dimensions
- Width 100 mm (3.94 in), Height 310 mm (12.20 in), Depth 243 mm (9.57 in)
- IP Rating
- IP20
- Shock Resistance
- 150 m/s² 6 ms operation (EN/IEC 60721-3-3)
- Ambient Air Temperature for Operation
- 5-55 °C (41-131 °F)
- Memory Type
- 256 kB NVRAM, 1 GB RAM DDR3L
- Integrated Connection Type
- 2 Ethernet RJ45 Sercos, 1 CAN SUB-D 9 CANopen, 1 USB type A, 2 Ethernet RJ45 RT-Ethernet, 1 Ethernet RJ45 PacNet, 1 SUB-D 9 Profibus DP, 1 COM1 SUB-D 9 RS232, 1 COM2 SUB-D 9 RS422/RS485, 1 SUB-D 9 master encoder, 1 Ethernet RJ45 10/100/1000BASE-T FTP/HTTP
- Standards
- EN/IEC 61131-2, CSA C22.2 No 274, UL 508C, CSA C22.2 No 14
- China Rohs Regulation
- X
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Sustainable Offer Status
- Green Premium product
- Environmental Disclosure
- ENVPEP1411004EN
- Product Compatibility
- LMC802
Discrete Input Voltage20...33 V, 0...6 V
Supply Current< 1 A
Discrete Output Number16 digital output, 2 analog output
Maximum Leakage Current0.4 mA
Analogue Input Number2
Analogue Input Resolution12 bits
Input Impedance100000 Ohm analog input, 500 Ohm discrete input
Max Number of I/O Expansion Module2
Net Weight3.5 kg
Pollution Degree2 IEC 61131-2
Vibration Resistance3.5 mm 5-8.4 Hz, 10 m/s² 8.4-150 Hz
Relative Humidity5-95 % without condensation
Programming LanguagesFBD, LD, SFC, ST, IL, CFC
Product CertificationsCE, CSA, cULus, EAC
Pvc FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Circularity ProfileENVEOLI1411004EN
Product Or Component Typemotion controller
Mercury FreeYes
