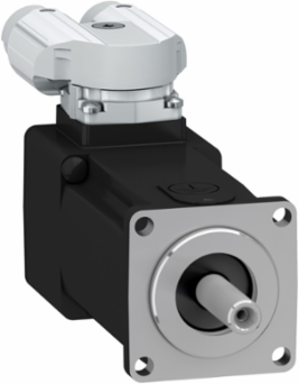

Schneider Electric SH30402P06A2000 SH3 servomotor, 40mm, 2 stacks, smooth Shaft, SinCos Singleturn 16, no Brake, angular, IP54/65
- MPN: SH30402P06A2000
- PPN: SCH-SH30402P06A2000
CAD
$1151.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SH3 servomotor, 40mm, 2 stacks, smooth Shaft, SinCos Singleturn 16, no Brake, angular, IP54/65
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|
Physical Attributes
| Motor Flange Size | 40 mm |
|---|
| Shaft Length | 25 mm |
|---|
Complementary Attributes
| Minimum Ambient Air Temperature For Operation | -20.0 °C, -20.0 °C |
|---|---|
| Maximum Ambient Air Temperature For Operation | 60.0 °C |
| Maximum Mechanical Speed | 9000 rpm |
| Minimum Operational Altitude | 0.0 m |
| Line Rated Current | 1.27 A |
|---|---|
| Maximum Current Irms | 7.2 A |
| Maximum Operational Altitude | 3000.0 m |
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Electrical Connection | rotatable right angled connector, straight connector |
| Nominal Speed | 9000 rpm, 4000 rpm 115 V single phase, 4000 rpm 230 V single phase, 9000 rpm 400 V three phase, 9000 rpm 480 V three phase |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0808937838, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0055622757, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 660 kg CO2 eq., 660.1078423559 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Circle Diameter Of The Mounting Holes | 46 mm |
| Continuous Stall Current | 1.5 A |
| Derating Altitude Scale | 80.0 m |
| Derating Temperature Scale | 80.0 °C |
| Device Short Name | SH3 |
| Holding Brake | without |
| Maximum Operational Altitude | 3000.0 m |
| Motor Figures | 400.0 V |
| Mounting Support | international standard flange |
| Number Of Motor Poles | 5.0 |
| Peak Nominal Torque | 1.5 N.m |
| Phase | three phase |
| Product Or Component Type | servo motor |
| Rotor Inertia | 0.0419 kg.cm² |
| Shaft End | smooth shaft |
| Software Version | EIME v5.8.1 |
| Stator Inductance | 6.4 mH |
| Sustainable Packaging | No |
| Torque Constant | 0.26 N.m/A 120 °C |
| Type Of Cooling | natural convection |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Germany |
| Energy Model - Use [B6] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Length Total | 93.4 mm |
| Maximum [In] Rated Current | 1.27 A |
| Package Weight(Lbs) | 848.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Minimum Ambient Air Temperature For Operation | -20.0 °C, -20.0 °C |
| Nominal Torque | 0.292 N.m 115 V single phase, 0.292 N.m 230 V single phase, 0.31 N.m 400 V three phase, 0.31 N.m 480 V three phase0.31 N.m full speed0.35 N.m half speed |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.0590828108 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 3 kg CO2 eq., 2.7449351351 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Centring Collar Diameter | 30 mm |
| Continuous Power | 290 W |
| Continuous Stall Torque | 0.39 N.m 115...480 V three phase |
| Derating Altitude Start | 1000.0 m |
| Derating Temperature Start | 40.0 °C |
| Encoder Type | absolute single turn SinCos Hiperface |
| Inertia | 0.0 kg.cm² of brake0.042 kg.cm² of motor |
| Minimum Operational Altitude | 0.0 m |
| Mounting Holes Diameter | 4.5 mm |
| Network Number Of Phases | 3 |
| Number Of Mounting Holes | 4 |
| Peak Stall Torque | 1.5 N.m 480 V three phase |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | Yes |
| Shaft Diameter | 8 mm |
| Sizing Reference | SH30402P |
| Speed Feedback Resolution | 16 periods |
| Stator Resistance | 11.6 Ohm |
| Temperature Copper Hot | 120 °C |
| Total Lifecycle Carbon Footprint | 663 kg CO2 eq. |
| Pep Code | ENVPEP111049EN |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Coordinate and synchronize motion control up to 207W during 10 years and a 70% use rate. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1347.311 |
| Energy Model - Installation [A5] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| [Us] Rated Supply Voltage | 115...480 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8501514040 |
Environment Attributes Main
| Ip Degree Of Protection | IP54 shaft bushing without shaft seal ring: conforming to IEC 60034-5IP65 motor: conforming to IEC 60034-5, IP65 shaft bushing: conforming to IEC 60034-5 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111049EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 662.9983163613 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP111049EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | three phase |
|---|
| Product Or Component Type | servo motor |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|
| ETIM 9 | EC001851 |
|---|
Output Attributes
| Nominal Output Power | 152 W 115 V single phase, 152 W 230 V single phase, 275 W 400 V three phase289 W 480 V three phase |
|---|
| Output Current 3s Peak | 7.2 A |
|---|
