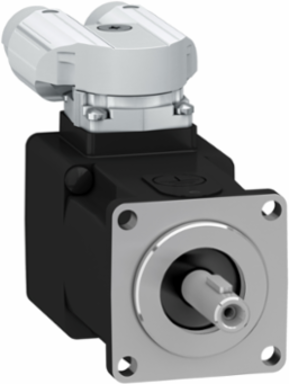

Schneider Electric BSH0401P16A2A Lexium 32 AC Servo Motor, 0.21 N.m Torque, 9000 rpm, 73.4 mm Length, IP50
- MPN: BSH0401P16A2A
- PPN: SCH-BSH0401P16A2A
CAD
$1243.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Lexium 32 AC Servo Motor by Schneider Electric is engineered for high-performance motion control, making it an ideal choice for automation applications. With a robust torque output of 0.21 N.m and a rapid speed of 9000 rpm, this servo motor ensures precise and responsive operation in demanding environments. Its compact design, measuring 73.4 mm in length and rated at IP50, enables effective integration into various systems while offering protection suitable for typical industrial conditions. This product exemplifies the reliability and efficiency that Schneider Electric is known for, proving essential for enhancing automation processes in motion control applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Physical Attributes
- Key Width
- 12 mm
- Shaft Length
- 25 mm
Motor Flange Size40 mm
Complementary Attributes
- Maximum Current Irms
- 4.7 A LXM32.U60N4 480 V, 4.7 A LXM32.U60N4 400 V4.7 A LXM32.U45M2 230 V, 4.5 A
- Line Rated Current
- 1.02 A
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Operational Altitude
- 3000.0 m
- Minimum Operational Altitude
- 0.0 m
Minimum Ambient Air Temperature For Operation-20.0 °C, -20.0 °C
Maximum Ambient Air Temperature For Operation60.0 °C
Maximum Mechanical Speed10000 rpm
Maximum Permanent Current1.12 A
Important Information Attributes
- Coefficient 1 1
- -3.6667E-06 N.m/rpm, -3.6667E-06 N.m/rpm
- Minimum Ambient Air Temperature For Operation
- -20.0 °C, -20.0 °C
- Nominal Torque
- 0.18 N.m full speed0.2 N.m half speed, 0.176 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.176 N.m LXM32.U60N4 1.5 A, 400 V, three phase0.184 N.m LXM32.U45M2 1.5 A, 230 V, single phase
- Saturation Coefficient
- -0.0175957658702008, -0.0175957658702008
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0590828108
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 2.7449351351
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 46 mm
- Coefficient 1 3
- 0 N.m/rpm3
- Coefficient 1 5
- 0 N.m/rpm5
- Coefficient 2 0
- 0.0188241649361797 N.m
- Continuous Power
- 220 W
- Derating Altitude Scale
- 80.0 m
- Derating Temperature Scale
- 20.0 °C
- Device Short Name
- BSH
- Feedback Type
- single turn SinCos Hiperface
- Inertia
- 0.0 kg.cm² of brake0.023 kg.cm² of motor
- Minimum Operational Altitude
- 0.0 m
- Motor Voltage Drop Coefficient
- 1
- Mounting Support
- international standard flange
- Number Of Motor Poles
- 5.0
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Product Or Component Type
- servo motor
- Rotor Inertia
- 0.0232 kg.cm²
- Shaft Diameter
- 8 mm
- Sizing Reference
- BSH0401P
- Speed Feedback Resolution
- 32768 points/turn
- Stator Inductance
- 7.3 mH 20 °C
- Sustainable Packaging
- No
- Temperature Copper Hot
- 120 °C
- Temperature Magnet Rt
- 20 °C
- Total Lifecycle Carbon Footprint
- 198 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Germany
- Energy Model - Use [B6]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Length Total
- 73.4 mm
- Accuracy Error [Angular]
- 0.08 °
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8501514040
Continuous Stall Torque0.21 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.21 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.21 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Nominal Speed9000 rpm, 9000 rpm LXM32.U60N4 1.5 A, 480 V, three phase, 9000 rpm LXM32.U60N4 1.5 A, 400 V, three phase4000 rpm LXM32.U45M2 1.5 A, 230 V, single phase
Peak Stall Torque0.8 N.m LXM32.U60N4 1.5 A, 480 V, three phase, 0.8 N.m LXM32.U60N4 1.5 A, 400 V, three phase, 0.8 N.m LXM32.U45M2 1.5 A, 230 V, single phase
Carbon Footprint Of The Distribution Phase [A4]0.0808937838, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0055622757, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]195 kg CO2 eq., 195.2821462945
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1905
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Centring Collar Diameter30 mm
Coefficient 1 20 N.m/rpm²
Coefficient 1 40 N.m/rpm4
Coefficient 1 60 N.m/rpm6
Coefficient 2 11.18333333333333E-06 N.m/rpm
Continuous Stall Current1.12 A
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionrotatable right-angled connectors
Holding Brakewithout
Maximum Operational Altitude3000.0 m
Motor Figures400.0 V
Mounting Holes Diameter4.5 mm
Network Number Of Phases3
Number Of Motor Stacks1
Peak Nominal Torque0.72 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Second Shaftwithout second shaft end
Shaft Endkeyed
Software VersionEIME v5.8.1
Stator Electrical Time Constant0.85 ms 20 °C
Stator Resistance17.2 Ohm 20 °C
Switching Frequency8 kHz
Temperature Magnet Hot100 °C
Torque Constant0.19 N.m/A 120 °C
Type Of Coolingnatural convection
Pep CodeENVPEP111049EN
Pep Verification Date2020-08-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionCoordinate and synchronize motion control up to 207W during 10 years and a 70% use rate.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh398.58
Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
[Us] Rated Supply Voltage400 V
Maximum [In] Rated Current1.02 A
Package Weight(Lbs)697.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 198.1726202999
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-08-01
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP111049EN
Ip Degree Of ProtectionIP50 standard
Packaging Without Single Use PlasticNo
Pep CodeENVPEP111049EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 166 W LXM32.U60N4 1.5 A, 480 V, three phase, 166 W LXM32.U60N4 1.5 A, 400 V, three phase77 W LXM32.U45M2 1.5 A, 230 V, single phase
Output Current 3s Peak4.5 A
