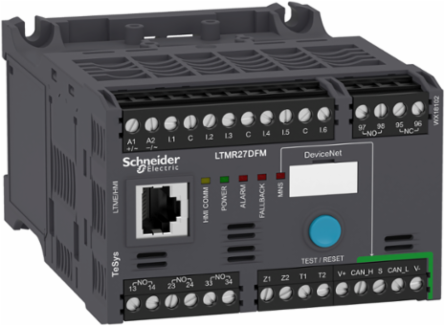

TeSys T Motor Controller, 1.35-27A, 100-240VAC, DeviceNet, 6 Inputs
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, South Korea, United States
Depth122.5 mm
Communications & Management Attributes
- Communication Port Protocol
- DeviceNet
Complementary Attributes
- Maximum Operating Frequency
- 2 Hz
Maximum Operating Rate1800 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 4 A gG output, 0.5 A gG control circuit
- Electromagnetic Compatibility
- control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3, fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4, fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4, voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11, conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6, temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5, temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5
- Load Current
- 5 A 250 V AC logic output, 5 A 30 V DC logic output
- Mechanical Robustness
- vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6, vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6, shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27
- Network And Machine Diagnosis Type
- trip history information, trip context information, running hours counter/operating time, remaining operating time before overload tripping, fault recording, waiting time after overload tripping, starting current and time, phase fault and earth fault trip counters, event recording, motor control command recording
- Protection Type
- thermal overload protection, power factor variation, phase failure, overload (long time), reverse polarity protection, earth-leakage protection, thermal protection, locked rotor, load fluctuation, overload, phase unbalance
- Certificate Agency
- LROS (Lloyds register of shipping), NOM, GL, C-tick, ATEX, KERI, DNV, BV, RINA, UL, RMRoS, EAC, CCC, CSA, ABS
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV supply, inputs and outputs EN/IEC 60947-4-1, 6 kV current or voltage measurement circuit EN/IEC 60947-4-1, 0.8 kV communication circuit EN/IEC 60947-4-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0678292917219235, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2 kg CO2 eq., 0.20159579532093852
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 11 kg CO2 eq., 11.22355161504505
- Local Publishable Date
- 2026-04-10
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - Protection relay
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- LTMR
- Current Consumption
- 8...62.8 mA
- Current State 1 Guaranteed
- logic input 79...264 V >= 2 mA 25 ms
- Device Short Name
- LTMR
- Measurement Current
- 1.35-27 A
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- motor controller
- Returnability
- Yes
- Supply Voltage Limits
- 93.5-264 V AC
- Tightening Torque
- control circuit: 0.5-0.6 N.m flat screwdriver 3 mm
- Web Services
- web server
- Pep Code
- ENVPEP0603008EN
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 61 mm
- [Us] Rated Supply Voltage
- 100...240 V AC 50/60 Hz
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 520 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contacts Type And Composition1 NO + 1 NC fault signal, 3 NO
Fire Resistance650 °C EN/IEC 60695-2-12, 960 °C UL 94
Measurement Accuracy+/- 30 min/year internal clock, +/- 30 min/year internal clock5...15 % earth fault current internal measurement, 1 % voltage 100...830 V), 3 % power factor, 5 % earth fault current external measurement, +/- 30 min/year internal clock, +/- 30 min/year internal clock, 0,02 Temperature, 1 % current, 5 % active and reactive power
Metering Typeimbalance current, temperature, earth-fault current, average current Iavg, phase current I1, I2, I3 RMS
Permissible Power480 VA AC-15), Ie = 2 A, 500000 cycles output), 30 W DC-13), Ie = 1.25 A, 500000 cycles output)
Protective Treatment12 x 24 hour cycles EN/IEC 60068-2-30, 48 h EN/IEC 60070-2-11, TH EN/IEC 60068
[Ui] Rated Insulation Voltage690 V EN/IEC 60947-1, 690 V CSA C22.2 No 14, 690 V UL 508
Connections - Terminalscontrol circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible without cable end, control circuit connector 2 0.2-1.5 mm² AWG 24...AWG 14)flexible without cable end, control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)solid without cable endcontrol circuit connector 1 0.25-2.5 mm² AWG 24...AWG 14)flexible with cable end, control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)flexible without cable end, control circuit connector 1 0.2-2.5 mm² AWG 24...AWG 14)solid without cable end, control circuit connector 2 0.2-1 mm² AWG 24...AWG 14)flexible with cable end, control circuit connector 2 0.5-1.5 mm² AWG 24...AWG 14)flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.008308292001472, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 18.33296993254577
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI100411EN_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1902
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bus TypeDeviceNet ISO 1198 1...64 125...500 kbit/s, terminal block 4 twisted shielded pairs cable
Connection Pitch5.08 mm
Current State 0 Guaranteedlogic input 0...40 V <= 15 mA 25 ms
Device Applicationequipment monitoring and control
Energy Efficiency OptimizedFalse
Overvoltage CategoryIII
Product NameTeSys T
RangeTeSys
Software Versionv6.2.5-6
Sustainable PackagingYes
Total Lifecycle Carbon Footprint31 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential, In %1
Width Nominal91 mm
Short-circuit Withstand100 kA conforming to EN/IEC 60947-4-1
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Environmental Disclosure
- ENVPEP0603008EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-10
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating
Halogene PerformanceHalogen free plastic parts product
China Rohs RegulationX
Carbon Footprint30.834254926635154
Circularity ProfileENVEOLI100411EN_V2
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP0603008EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- motor controller
ETIM
- ETIM 8
- EC002572
ETIM 9EC002572
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Current
- 3.1 mA 100 V, 7.5 mA 240 V
Logic Input Number6
