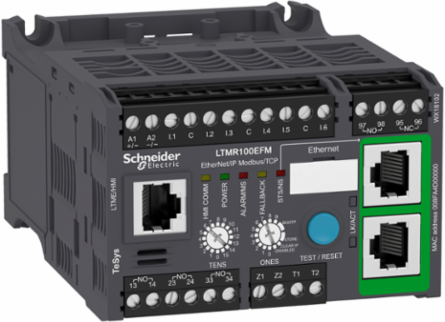

Schneider Electric LTMR100EFM TeSys T Motor Controller, 5-100A, Ethernet/IP, Modbus/TCP, 120-240VAC

MPN: LTMR100EFM
PPN: SCH-LTMR100EFM
UNSPSC: 39122214

$2768.92

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. Ethernet/IP and Modbus/TCP protocol is used by this controller. Ethernet TCP/IP communication is used. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 5 to 100 amperes. 120 to 240 VAC is used to power this controller. Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.

Features

Compact, smart and easy-to-select motor management system
Advanced protections, monitoring and pre-alarming
Designed for the management of critical processes in a harsh environment
Can be controlled through its terminal strip, HMI or communication port
Optional expansion module adds voltage, power and energy measurement

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Depth	122.5 mm

Weight	538 g

Communications & Management Attributes

Communication Port Protocol	Modbus TCP/EtherNet/IP

Complementary Attributes

Ui Rated Insulation Voltage	690 V EN/IEC 60947-1, 690 V CSA C22.2 No 14, 690 V UL 508
Maximum Operating Rate	1800 cyc/h
Us Rated Supply Voltage	100...240 V AC 50/60 Hz

Maximum Operating Frequency	2 Hz
Uimp Rated Impulse Withstand Voltage	4 kV supply, inputs and outputs EN/IEC 60947-4-16 kV current or voltage measurement circuit EN/IEC 60947-4-10.8 kV communication circuit EN/IEC 60947-4-1
Short Circuit Withstand	100 kA conforming to EN/IEC 60947-4-1

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contacts Type And Composition	1 NO + 1 NC fault signal, 3 NO
Measurement Accuracy	+/- 30 min/year internal clock, +/- 30 min/year internal clock, 5...15 % earth fault current internal measurement, 1 % voltage 100...830 V)3 % power factor5 % earth fault current external measurement, +/- 30 min/year internal clock, +/- 30 min/year internal clock0,02 Temperature, 5 % active and reactive power, 0,02 current
Network And Machine Diagnosis Type	waiting time after overload tripping, motor control command recording, trip context information, phase fault and earth fault trip counters, starting current and time, trip history information, fault recording, event recording, remaining operating time before overload tripping, running hours counter/operating time
Protection Type	reverse polarity protection, overload, phase unbalance, overload (long time), thermal protection, power factor variation, thermal overload protection, locked rotor, earth-leakage protection, load fluctuation, phase failure
Certificate Agency	C-tick, ABS, UL, DNV, NOM, RINA, RMRoS, BV, LROS (Lloyds register of shipping), KERI, EAC, CCC, CSA, ATEX, GL
Carbon Footprint Of The End Of Life Phase C1 To C4	1.0432112713399846, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	19 kg CO2 eq., 18.967572737903122
Local Data Status	Publishable
Return Indicator	Y
Serviceability	Yes
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI100411EN_V2
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1902
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Associated Fuse Rating	4 A gG output0.5 A gG control circuit
Compatibility Code	LTMR
Current Consumption	8...62.8 mA
Current State 1 Guaranteed	logic input 79...264 V >= 2 mA 25 ms
Device Short Name	LTMR
Fire Resistance	650 °C EN/IEC 60695-2-12960 °C UL 94
Measurement Current	5-100 A
Overvoltage Category	III
Product Name	TeSys T
Protective Treatment	12 x 24 hour cycles EN/IEC 60068-2-3048 h EN/IEC 60070-2-11TH EN/IEC 60068
Returnability	Yes
Supply Voltage Limits	93.5-264 V AC
Tightening Torque	control circuit: 0.5-0.6 N.m flat screwdriver 3 mm
Web Services	web server
Database Version	2024-01
Height Nominal	61 mm
Nbr. Of Units In Pkg.	1
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional Unit Unit	unit
Recyclability Potential In %	1

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Electromagnetic Compatibility	control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5, electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4, voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11, conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5, temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5
Metering Type	phase current I1, I2, I3 RMS, temperature, earth-fault current, average current Iavg, imbalance current
Permissible Power	480 VA AC-15), Ie = 2 A, 500000 cycles output), 30 W DC-13), Ie = 1.25 A, 500000 cycles output)
Connections Terminals	control circuit connector 1 0.25-2.5 mm² 24 AWG...14 AWG)flexible without cable end, control circuit connector 2 0.2-1.5 mm² 24 AWG...14 AWG)flexible without cable endcontrol circuit connector 2 0.2-1 mm² 24 AWG...14 AWG)solid without cable endcontrol circuit connector 1 0.25-2.5 mm² 24 AWG...14 AWG)flexible with cable endcontrol circuit connector 1 0.2-2.5 mm² 24 AWG...14 AWG)flexible without cable end, control circuit connector 1 0.2-2.5 mm² 24 AWG...14 AWG)solid without cable end, control circuit connector 2 0.2-1 mm² 24 AWG...14 AWG)flexible with cable end, control circuit connector 2 0.5-1.5 mm² 24 AWG...14 AWG)flexible without cable end
Carbon Footprint Of The Distribution Phase A4	0.07017722874306699, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.2 kg CO2 eq., 0.20857411131281714
Carbon Footprint Of The Use Phase B2 B3 B4 B6	11 kg CO2 eq., 11.22355161504505
Local Publishable Date	2026-06-27
Device Type	Relay, Control & Measurement - Protection relay
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Bus Type	Ethernet IEEE 802.3 0...159 10...100 Mbit/s, RJ45 2 shielded twisted pairs
Connection Pitch	5.08 mm
Current State 0 Guaranteed	logic input 0...40 V <= 15 mA 25 ms
Device Application	equipment monitoring and control
Energy Efficiency Optimized	False
Load Current	5 A 250 V AC logic output5 A 30 V DC logic output
Mechanical Robustness	vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	motor controller
Range	TeSys
Software Version	v6.2.5-6
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	32 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	91 mm
Customs Code	8537109160
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Ambient Air Temperature For Storage	-40-80 °C, -40-80 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-20-60 °C-20-60 °C
Environmental Disclosure	ENVPEP0603008EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-11-10
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Operating Altitude	<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating<= 6561.68 ft (2000 m) without derating, <= 6561.68 ft (2000 m) without derating
Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Carbon Footprint	31.51308696434404
Circularity Profile	ENVEOLI100411EN_V2
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP0603008EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
