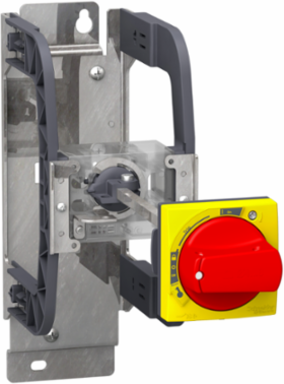

Schneider Electric LU9APN22 Mounting Bracket Kit with Extended Rotary Handle, IP54, for LUB

MPN: LU9APN22
PPN: SCH-LU9APN22

$304.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric LU9APN22 Mounting Bracket Kit is designed for seamless integration with the LUB series, ensuring a secure and stable installation. Featuring an extended rotary handle, this kit enhances user accessibility while maintaining an IP54 rating that offers protection against dust and limited water exposure. Ideal for applications in automation and control, this mounting bracket kit is essential for ensuring reliable performance and ease of use in motors, drives, and control systems.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France

Physical Attributes

Handle Color	red

Handle Front Plate Color	yellow

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Traceability	No
Weee Applicability	Finished product
Weee Exclusion Rationale	Product/component not in scope – not electric/electronic device
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	LU9A
Locking Options Description	1 to 3 padlocks
Product Or Component Type	mounting bracket kit
Range Of Product	TeSys Ultra
Rotary Handle Mounting Style	extended
Sustainable Packaging	No
Handle Front Plate Color	yellow
Back/Door Distance	191-300 mm
Package Weight(Lbs)	917 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Local Publishable Date	2026-06-27
Stocking Flag	N
Serviceability	No
Field Service Division	PPIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2023
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	LU9
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Range	TeSys
Returnability	Yes
Rotary Handle Padlocking	padlock in OFF position
Handle Color	red
Accessory / Separate Part Category	control accessory
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	LUB

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ip Degree Of Protection	IP54
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
