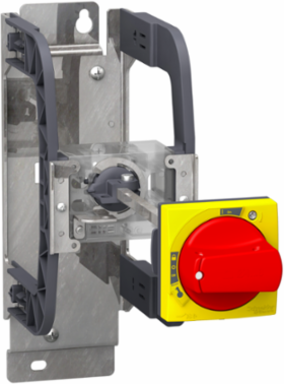

Schneider Electric LU9APN24 TeSys Ultra Mounting Bracket Kit, IP65, Extended Rotary Handle, Red

MPN: LU9APN24
PPN: SCH-LU9APN24

$304.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This mounting bracket kit from Schneider Electric is designed for the TeSys Ultra series, offering enhanced utility with its IP65 rating, ensuring protection against dust and water ingress. The extended rotary handle in a vibrant red color not only adds a visually striking element but also enhances operational accessibility and control. Ideal for automation and control applications, this kit provides a reliable solution for mounting and securing devices in a wide range of environments, making it an essential part of any efficient motor drive system.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Czechia, France, United States

Physical Attributes

Handle Color	red

Handle Front Plate Color	yellow

Important Information Attributes

Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Traceability	No
Weee Applicability	Finished product
Weee Exclusion Rationale	Product/component not in scope – not electric/electronic device
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Product Kit Identifier	N
Device Short Name	LU9A
Locking Options Description	1 to 3 padlocks
Product Or Component Type	mounting bracket kit
Range Of Product	TeSys Ultra
Rotary Handle Mounting Style	extended
Sustainable Packaging	No
Handle Front Plate Color	yellow
Back/Door Distance	191-300 mm
Package Weight(Lbs)	945.000 g
Warranty (In Months)	18

Local Publishable Date	2026-06-27
Stocking Flag	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2023
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Compatibility Code	LU9
Energy Efficiency Optimized	False
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	TeSys
Returnability	No
Rotary Handle Padlocking	padlock in OFF position
Handle Color	red
Accessory / Separate Part Category	control accessory
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	LUB

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ip Degree Of Protection	IP65
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
