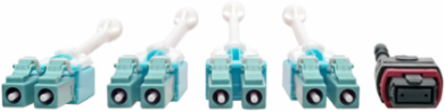

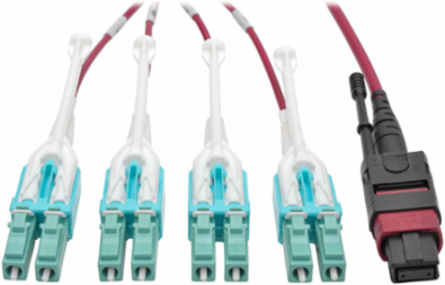

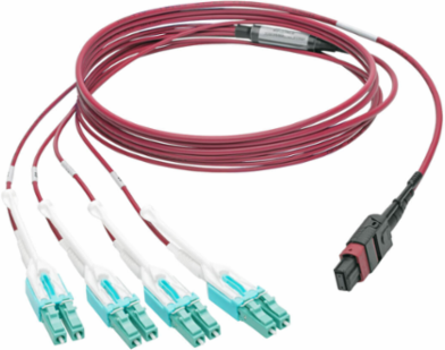

Tripp Lite N845-01M-8L-MG 1M MTP/MPO to 8xLC Fiber Patch Cable, OM4, 40Gb, Magenta
- MPN: N845-01M-8L-MG
- UPC: 037332200044
- PPN: TRP-N845-01M-8L-MG
CAD
$392.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

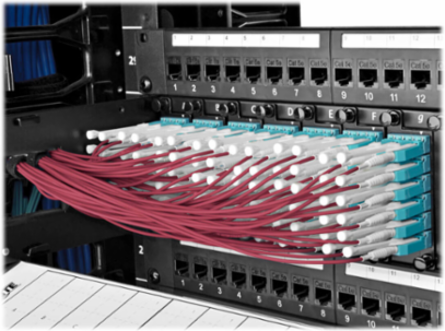

Connects 4 10Gb duplex LC devices to a 40Gb MTP port on a network switch. Designed for high-density connections between 40GBASE-SR4 network equipment.
Features
- Push/pull tab connectors install/remove with one hand
- Plenum-rated jacket for connecting in ceilings, walls and ducts
- Magenta color for easy OM4 identification
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
- Slim, space-saving uniboot design for neat cable management
- Premium-grade ceramic ferrule designed for fast applications
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
- Network Speed
- 10Gbps / 40Gbps / 100Gbps
- Clad Diameter
- 125 micron
- Operating Temperature Range
- -20 to 60 C (-4 to 140 F)
- Cable Length
- 1 m (3.3 ft)
- Side B Connector
- 8 male LC duplex with pull/push tab
- Fiber Type
- OM4 multimode
- Ferrule Material
- Premium-grade ceramic
- Housing Material
- Sturdy plastic
- Warranty
- Lifetime limited
Number of Fibers12
Core Diameter50 micron
Storage Temperature Range-20 to 60 C (-4 to 140 F)
Side A Connector12-STRAND MTP (FEMALE)
ColorMagenta
Jacket RatingPlenum-rated
Cable DesignSlim, space-saving uniboot
CompatibilityBase-8 Fiber compatible with QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4
