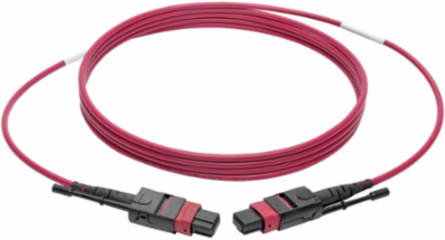

Tripp Lite N845-01M-12-MG 12-Fiber MTP/MPO Multimode Patch Cable, 1M, OM4, Magenta
- MPN: N845-01M-12-MG
- UPC: 037332200266
- PPN: TRP-N845-01M-12-MG
CAD
$329.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

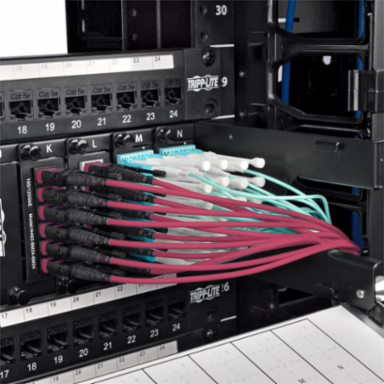

Premium multimode fiber optic cabling for transmitting 40/100 Gb data and voice signals over short distances. Designed for high-density connections between network equipment in telecom rooms and data centers.
Features

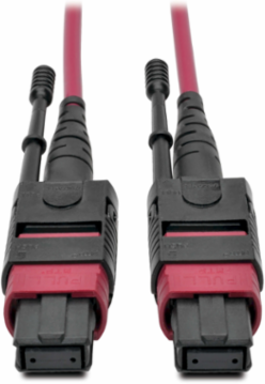

- Push/pull tab connectors install/remove with one hand

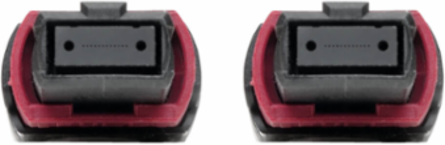

- 12-fiber MTP/MPO connectors with 12x density of SC connectors
- 100% tested for low insertion loss and back reflection
- 50/125 OM4-rated multimode fiber
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
- Magenta color for easy OM4 identification
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Additional
| Network Speed | 10Gbps, 40Gbps, 100Gbps |
|---|---|
| Attenuation @ 1300NM | 1.0 dB/Km |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Cable Length | 39.4 in. (3.3 ft) |
| Material | 50/125 duplex glass fiber |
| Push/Pull Tabs | Yes |
| Core Diameter | 50 micron |
| Technology | Multimode; MTP/MPO |
| Shipping Weight | 0.04 lbs. |
| Attenuation @ 850NM | 3.0 dB/Km |
|---|---|
| Operating Temperature Range | -4 to 140 F (-20 to 60 C) |
| Fiber Count | 12 |
| Connector Type | 12-Strand MTP (Female) |
| Optical Mode | OM4 |
| Clad Diameter | 125 micron |
| Color | Magenta |
| Warranty | Lifetime limited warranty |
