Schneider Electric M9A26948 Multi9 Shunt Trip Release with OC Contact 12/24V AC/DC, 2 Mm Pitches

MPN: M9A26948
PPN: SCH-M9A26948
UNSPSC: 39121601

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$59.95

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

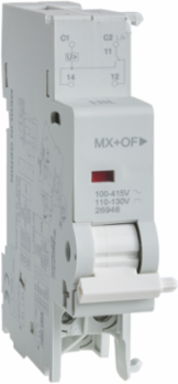

This Acti9 MX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 12…24VAC or 12…24VDC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with EN/IEC 60947-1 standards.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain, United States
Depth	68 mm

Weight	51.188 g

Physical Attributes

Wire Stripping Length	9 mm for bottom connection

Complementary Attributes

Uc Control Circuit Voltage	12...24 V AC 50/60 Hz, 12...24 V DC

Line Rated Current	6-6 A at <= 240 V, AC

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Range Of Product	GFP, C60SP, C60BPR, C60BP
Control Circuit Voltage 4	12...24 V
Certificate Agency	CCC, PCT, UL, UR
Carbon Footprint Of The End Of Life Phase C1 To C4	0.0975389988446757, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.4 kg CO2 eq., 0.3570193081128293
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1648
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Commercial
Device Short Name	MX + OF
Local Signalling	action indicator
Mounting Support	DIN rail
Product Or Component Type	shunt trip release with OC contact
Returnability	Yes
Software Version	v6.2.5-6
Tightening Torque	1-1 N.m bottom
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	18 mm
Nbr. Of Units In Pkg.	1
Tsca Regulation	Does not contain Section 6H Chemical
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	29

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Connections Terminals	clamp terminal bottom) - 1 2.5-2.5 mm² 14 AWG) - rigid, clamp terminal bottom) - 2 1.5-1.5 mm² 16 AWG) - rigid
Control Circuit Voltage 4 Control Circuit Voltage	12...24 V
Carbon Footprint Of The Distribution Phase A4	0.013145299344459637, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.018197409390675216
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.5 kg CO2 eq., 0.5311163929133567
Local Publishable Date	2025-07-30
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Energy Efficiency Optimized	False
Mounting Mode	fixed
Product Availability	Stock - Normally stocked in distribution facility
Range	Multi9
Signal Contacts Composition	1 C/O
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Database Version	2024-01
Height Nominal	82.5 mm
Epa Pfas Regulation	No PFAS Chemicals Present
Customs Code	8505907501
Halogen Free Status	Halogen free plastic parts product
Functional Unit Description	Indicate locally and remotely electrical protection device status for 20 years
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1.314

Environment Attributes Main

Ambient Air Temperature For Operation	-25-50 °C, -25-50 °C
Take Back	No
Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Mercury Free	Yes
9 Mm Pitches	2
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2206015EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	1.0170174086059964
Environmental Disclosure	ENVPEP2206015EN
Halogen Content Performance	Halogen free plastic parts product
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-12-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
