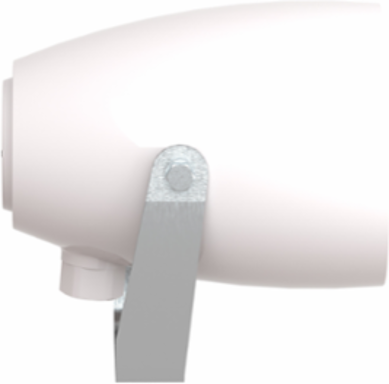

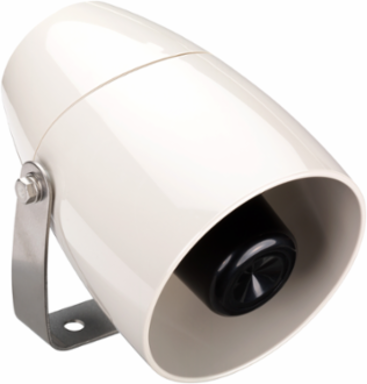

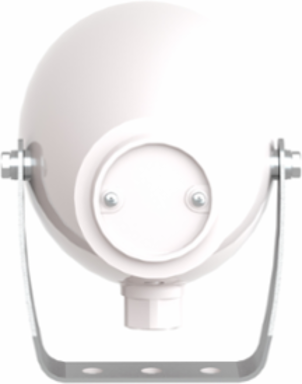

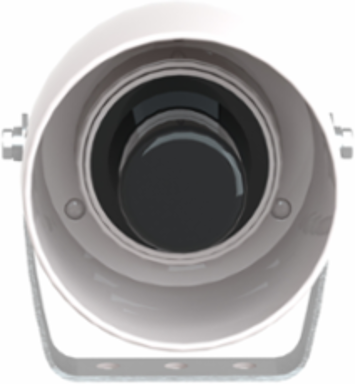

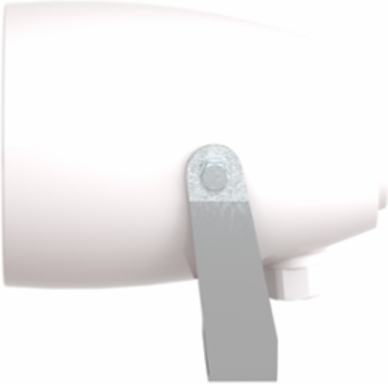

Schneider Electric XVS10BMW Harmony XVS 106dB Multi-Sound Siren, 12/24V AC/DC, IP53, 0.8 kg
- MPN: XVS10BMW
- PPN: SCH-XVS10BMW
CAD
$211.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XVS10BMW is a multi-sound siren 12/24V DC 2 tones. It is part of the range Harmony XVS sirens and electronics alarms range .
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Argentina, Brazil, France, Indonesia, Japan
Depth153.2 mm
Physical Attributes
- Color
- White
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Current Consumption
- 300 mA 24 V, 500 mA
- [Us] Rated Supply Voltage
- 12 V AC/DC, 24 V AC/DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.8099352185
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 8 kg CO2 eq., 8.0894827763
- Local Data Status
- Publishable
- Return Indicator
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1411024EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- XVS
- Electrical Connection
- cable 6.5-8.5 mm
- Marking
- CE
- Noise Level
- 106-106 dB continuous or intermittent tone)1 m
- Product Or Component Type
- siren
- Range Of Product
- Harmony XVS
- Signalling Type
- 2 tones siren
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP1411024EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 18
- Width Nominal
- 114 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8531809041
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyIEC 60947-1, IEC 60947-5-1
Carbon Footprint Of The Distribution Phase [A4]0.1650757841, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.4968721851, 0.5 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.0671042287
Local Publishable Date2026-03-26
Stocking FlagY
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameXVS
Electrical Shock Protection Classclass II conforming to IEC 61140
MaterialPC: body
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionMulti-sound siren is part of the range Harmony type XVS multi sound sirens and alarms. It is supplied complete and pre-cabled. Supply voltage is 230V AC and degree of protection is IP 53. It features a sound with continuous or intermittent tone of 106dB at 1 m and 2 tones. It is designed for long distance indication of the operating status of a machine. It is used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels. It has power consumption 9.2W with 1% active mode for 10 years and product is conforming with standard EN 60947-5-1.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh0.144
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; US
Height Nominal114 mm
[Uimp] Rated Impulse Withstand Voltage0.8 kV
Package Weight(Lbs)1.032 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -30-50 °C, -30-50 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 10.6284701927
- Environmental Disclosure
- ENVPEP1411024EN
- Ip Degree Of Protection
- IP53
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1411024EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-35-70 °C, -35-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1411024EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- siren
Range Of ProductHarmony XVS
ETIM
- ETIM 8
- EC000195
ETIM 9EC000195
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
