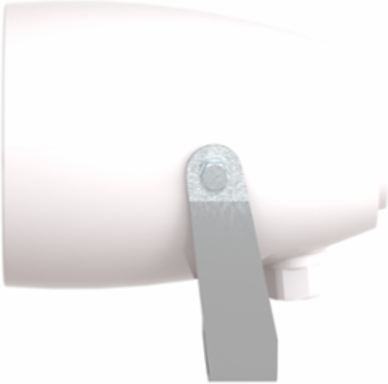

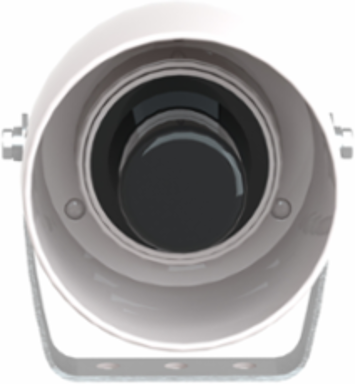

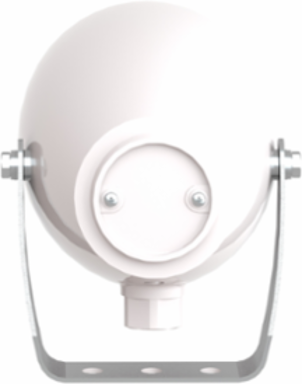

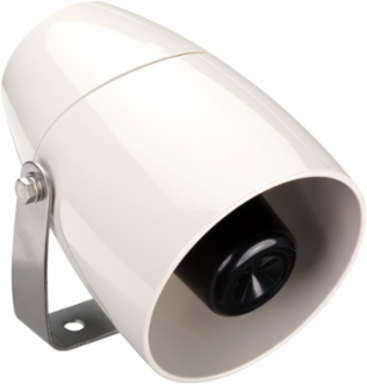

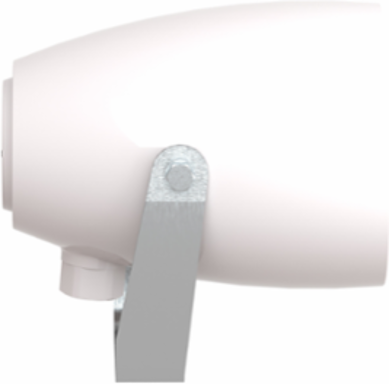

Schneider Electric XVS10MMW Harmony XVS Multisound Siren, 106dB, 230V AC, IP53, White
- MPN: XVS10MMW
- PPN: SCH-XVS10MMW
CAD
$243.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This white multi-sound siren is part of the range Harmony type XVS multi sound sirens and alarms. It is supplied complete and pre-cabled. Supply voltage is 230V AC and degree of protection is IP 53. It features a sound with continuous or intermittent tone of 106dB at 1 m and 2 tones. It is designed for long distance indication of the operating status of a machine. It is used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XVS
- Colour
- white
- Noise Level
- 106-106 dB continuous or intermittent tone)1 m
- Device Short Name
- XVS
Product Or Component Typesiren
Signalling Type2 tones siren
[Us] Rated Supply Voltage230 V AC
Complementary
- Height
- 114 mm
- Current Consumption
- 40 mA 230 V
- Net Weight
- 1 kg
- Electrical Connection
- cable 6.5-8.5 mm
- Width
- 114 mm
Clamping Connection Capacity<= 1 x 1.5 mm²
MarkingCE
[Uimp] Rated Impulse Withstand Voltage4 kV
MaterialPC: body
Depth153.2 mm
Environment
- Ambient Air Temperature For Operation
- -30-50 °C
- Ip Degree Of Protection
- IP53
- Electrical Shock Protection Class
- class II IEC 61140
StandardsIEC 60947-1 || IEC 60947-5-1
Ambient Air Temperature For Storage-35-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1411024EN
- Circularity Profile
- ENVEOLI1411024EN
Mercury FreeYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
