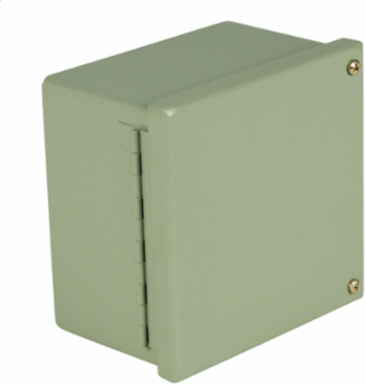

Wiegmann WA100804GIE N12 JIC Hinged Screw-Cover 10X8X4 Carbon Steel - Gray
- MPN: WA100804GIE
- UPC: 786725442157
- PPN: HBL-WA100804GIE
- UNSPSC: 39121324
CAD
$244.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 JIC Hinged Screw-Cover 10X8X4 Carbon Steel - Gray
Features
- Fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. Cover is secured by continuous hinge. Captivated door screws thread into sealed wells. No mounting feet or mounting holes are provided. Weldnuts are provided to mount optional panels. Grounding provisions provided.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Color | Ansi-61 Gray Textured |
| Cubic Capacity | 320 cu.in |
| Finish | Textured |
| Mounting | Wall Mount |
| Standard | cULus |
| Width | 8 in |
| Finish Type | Textured |
| Nema Rating | 12 |
| Class Code | P04 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P04P067 |
| Construction | Continuously Welded Seams |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 8.170 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Application | Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water. |
|---|---|
| Cover Type | Hinged Screw Cover |
| Depth | 4 in |
| Height | 10 in |
| NEMA Rating | 12 |
| Type | Enclosure |
| Weight | 8.17 lb. |
| Mounting Type | Wall Mount |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | JIC,CS,OIL TIGHT,10X8X4 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 6.000x12.200x10.100 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725442157 |
| Pallet Height | 40.500 in |
| Pallet Weight | 482.760 lb. |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
