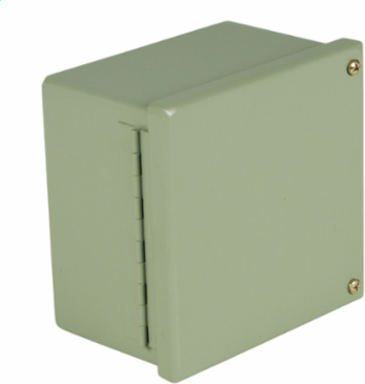

Wiegmann WA100806GIE N12 JIC Hinged Screw-Cover 10X8X6 Carbon Steel - Gray
Wiegmann WA100806GIE N12 JIC Hinged Screw-Cover 10X8X6 Carbon Steel - Gray
- MPN: WA100806GIE
- UPC: 786725442409
- PPN: HBL-WA100806GIE
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$245.28/ EA
Description
N12 JIC Hinged Screw-Cover 10X8X6 Carbon Steel - Gray
Features
- Fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. Cover is secured by continuous hinge. Captivated door screws thread into sealed wells. No mounting feet or mounting holes are provided. Weldnuts are provided to mount optional panels. Grounding provisions provided.
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 10.200 in
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 480 cu.in
- Finish
- Textured
- Mounting
- Wall Mount
- Standard
- cULus
- Width
- 8 in
- Finish Type
- Textured
- Nema Rating
- 12
- Class Code
- P04
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P04P067
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginMX
ApplicationDesigned for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water.
Cover TypeHinged Screw Cover
Depth6 in
Height10 in
NEMA Rating12
TypeEnclosure
Weight9 lb.
Mounting TypeWall Mount
ARRA CompliantContact Manufacturer
Description - InvoiceJIC,CS,OIL TIGHT,10X8X6
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE9.700x16.150x10.200 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725442409
Pallet Height33.600 in
Pallet Weight228.120 lb.
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorNo
