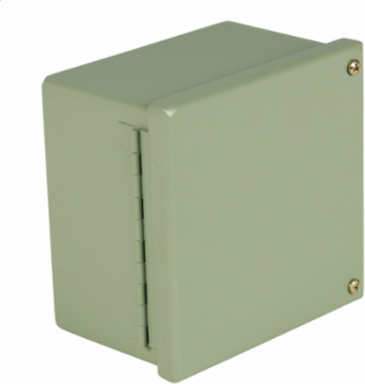

Wiegmann WA121206GIE N12 JIC Hinged Screw-Cover 12X12X6 Carbon Steel - Gray
- MPN: WA121206GIE
- UPC: 786725442553
- PPN: HBL-WA121206GIE
- UNSPSC: 39121324
CAD
$376.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N12 JIC Hinged Screw-Cover 12X12X6 Carbon Steel - Gray
Features
- Fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. Cover is secured by continuous hinge. Captivated door screws thread into sealed wells. No mounting feet or mounting holes are provided. Weldnuts are provided to mount optional panels. Grounding provisions provided.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 864 cu.in
- Finish
- Textured
- Mounting
- Wall Mount
- Standard
- cULus
- Width
- 12 in
- Finish Type
- Textured
- Nema Rating
- 12
- Class Code
- P04
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P04P067
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 14.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ApplicationDesigned for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water.
Cover TypeHinged Screw Cover
Depth6 in
Height12 in
NEMA Rating12
TypeEnclosure
Weight14 lb.
Mounting TypeWall Mount
ARRA CompliantContact Manufacturer
Description - InvoiceJIC,CS,OIL TIGHT,12X12X6
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE7.700x13.150x12.700 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725442553
Pallet Height50.700 in
Pallet Weight631.305 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
