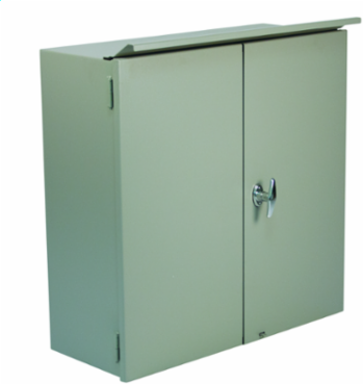

Wiegmann CTDD303012 NEMA 3R Double Door Hinged Cover Enclosure 30x30x12 Inch Carbon Steel
- MPN: CTDD303012
- UPC: 786725853946
- PPN: HBL-CTDD303012
- UNSPSC: 39121324
CAD
$2256.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N3R CT Double Door Hinged-Cover 30X30X12 Carbon Steel - Gray
Features
- Manufactured from 12 gauge carbon steel
- Fully seam welded and ground smooth, with weep hole
- Drip shield
- Lift off hinges, gasketed doors
- Supplied with non-locking "T" handle
- Meter seal provisions
- Mounting holes in back
- Supplied with studs in back of enclosure to support optional wood sub panel
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Application | Enclosures are designed as a housing for current and voltage transformers, recorders, meters, junction, service box, relay, and/or for terminal instrumentation. |
| Cover Type | Hinged Cover |
| Depth | 12 in |
| Height | 30 in |
| NEMA Rating | 3R |
| Type | Enclosure |
| Weight | 103 lb. |
| Knockouts | No |
| Nema Rating | 3R |
| Class Code | P01 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P01P001 |
| Construction | Seam and Tack Welded |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 103.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Number of Doors (Fixed) | 2 |
|---|---|
| Color | Ansi-61 Gray Textured |
| Cubic Capacity | 10800 cu.in |
| Finish | Textured |
| Mounting | Mounting Holes |
| Standard | cULus |
| Width | 30 in |
| Finish Type | Textured |
| Mounting Type | Mounting Holes |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CT,DD,CS,30X30X12 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 15.000x32.500x32.000 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725853946 |
| Pallet Height | 46.500 in |
| Pallet Weight | 378.000 lb. |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
