Wiegmann

Wiegmann CTDD363612 36 Inch x 36 Inch x 12 Inch NEMA 3R Double Door Enclosure, Carbon Steel, Gray

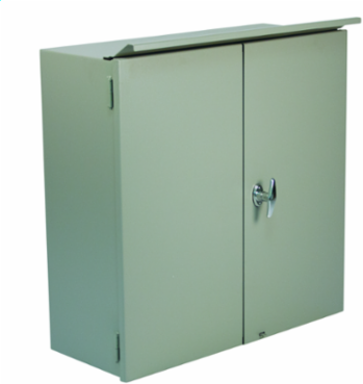

36 Inch x 36 Inch x 12 Inch NEMA 3R Double Door Enclosure, Carbon Steel, Gray
  • MPN: CTDD363612
  • UPC: 786725853991
  • PPN: HBL-CTDD363612
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2405.55/ EA

Description

N3R CT Double Door Hinged-Cover 36X36X12 Carbon Steel - Gray

Features

  • Manufactured from 12 gauge carbon steel
  • Fully seam welded and ground smooth, with weep hole
  • Drip shield
  • Lift off hinges, gasketed doors
  • Supplied with non-locking "T" handle
  • Meter seal provisions
  • Mounting holes in back
  • Supplied with studs in back of enclosure to support optional wood sub panel

Specifications

Specifications

Country of Origin
Mexico
Application
Enclosures are designed as a housing for current and voltage transformers, recorders, meters, junction, service box, relay, and/or for terminal instrumentation.
Cover Type
Hinged Cover
Depth
12 in
Height
36 in
NEMA Rating
3R
Type
Enclosure
Weight
154 lb.
Knockouts
No
Nema Rating
3R
Class Code
P01
Freight Class Code
06316009
Image Actual Or Representative
R
MSDS Flag
No
Returnable Indicator
Yes
Sub Class Code
P01P001
Construction
Seam and Tack Welded
Base Unit of Measure
EA
Carton - Gross Weight per Pack
154.000 lb.
Carton - Pack Description
Carton
Carton - Total Units
1 EA
Pallet Length
48.000 in
Pallet Width
40.000 in
Number of Doors (Fixed)2
ColorAnsi-61 Gray Textured
Cubic Capacity15552 cu.in
FinishTextured
MountingMounting Holes
StandardcULus
Width36 in
Finish TypeTextured
Mounting TypeMounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceCT-DD-36X36X12
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE14.000x39.000x38.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725853991
Pallet Height46.500 in
Pallet Weight480.000 lb.

Certifications

Buy American Compliant
Contact Manufacturer
EU RoHS Indicator
No
Certified ListedcULus
ListingsUL, CSA

Downloads
