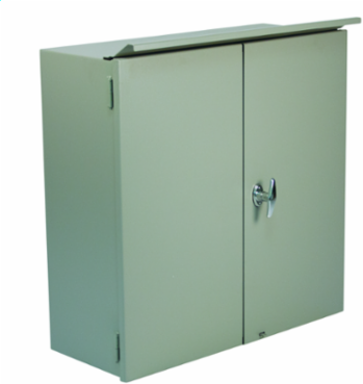

Wiegmann CTDD362412 N3R Double Door Hinged-Cover 36 Inch x 24 Inch x 12 Inch Carbon Steel, NEMA 3R

MPN: CTDD362412
UPC: 786725853960
PPN: HBL-CTDD362412
UNSPSC: 39121324

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1595.83/ EA

Qty:

Loading add to cart quantity...

Description

N3R CT Double Door Hinged-Cover 36X24X12 Carbon Steel - Gray

Features

Manufactured from 14 gauge carbon steel
Fully seam welded and ground smooth, with weep hole
Drip shield
Lift off hinges, gasketed doors
Supplied with non-locking "T" handle
Meter seal provisions
Mounting holes in back
Supplied with studs in back of enclosure to support optional wood sub panel

Specifications

Country of Origin: Mexico

Application: Enclosures are designed as a housing for current and voltage transformers, recorders, meters, junction, service box, relay, and/or for terminal instrumentation.

Cover Type: Hinged Cover

Depth: 12 in

Height: 24 in

NEMA Rating: 3R

Type: Enclosure

Weight: 80 lb.

Knockouts: No

Nema Rating: 3R

Class Code: P01

Freight Class Code: 06316009

Image Actual Or Representative: R

MSDS Flag: No

Returnable Indicator: Yes

Sub Class Code: P01P001

Construction: Seam and Tack Welded

Base Unit of Measure: EA

Carton - Gross Weight per Pack: 80.000 lb.

Carton - Pack Description: Carton

Carton - Total Units: 1

Number of Doors (Fixed)2

ColorAnsi-61 Gray Smooth

Cubic Capacity10368 cu.in

FinishSmooth

MountingMounting Holes

StandardcULus

Width36 in

Finish TypeSmooth

Mounting TypeMounting Holes

ARRA CompliantContact Manufacturer

Description - InvoiceCT,DD,CS,36X24X12

Harmonization Code7326908688

Lead Time21 wk

Order Multiple1 EA

Stock IndicatorS - Shelf Stock

UL ListedYes

MaterialCarbon Steel

BOX SIZE24.000x12.000x36.000 (in)

Carton - Number of Sub Packs1

Carton - SCC-14 Next Lower Level Sub Pack00786725853960

Pallet Weight0.000 lb.

Certifications

Buy American Compliant: Contact Manufacturer

EU RoHS Indicator: No

Certified ListedcULus

ListingsUL, CSA
