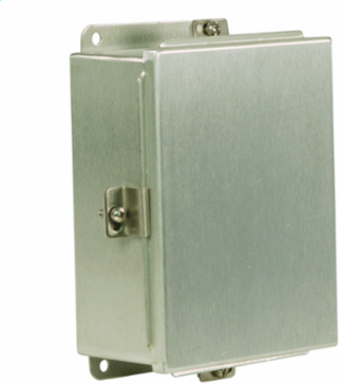

Wiegmann BN4121005AL N4X JIC Lift-Off Cover 12X10X5 Aluminum
- MPN: BN4121005AL
- UPC: 786725376834
- PPN: HBL-BN4121005AL
- UNSPSC: 39121324
CAD
$776.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N4X JIC Lift-Off Cover 12X10X5 Aluminum
Features
- Bodies and doors fabricated from .080-inch thick (2 millimeters) 5052-H32 aluminum
- Continuously welded seams ground smooth, less holes or knockouts
- Closed cell oil resistant neoprene gasket
- External mounting plates, top and bottom of enclosure
- Weldnuts are provided to secure optional panel
- Stainless steel screws and clamps on four sides of cover to assure water tight seal
- Optional panels and terminal kits must be ordered separately
- Grounding provisions provided
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Actual Height
- 6.500 in
- Number of Doors (Fixed)
- 1
- Cover Type
- Lift Off
- Depth
- 13 in
- Mounting
- External Mounting Plates
- Standard
- cULus;IEC
- Width
- 11 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Mounting Type
- External Mounting Plates
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N4,JIC,ALUM,CLAMPCVR 12X10X5
- Harmonization Code
- 7616995190
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Clamps
- Construction
- Continuously Welded Seams
- Series
- BN4-AL Series
- BOX SIZE
- 7.500x14.250x12.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725376834
- Pallet Height
- 49.500 in
- Pallet Weight
- 336.600 lb.
- NAICS Code
- 3359326101
Actual Depth12.5 in
Actual Width10.500 in
ApplicationDesigned as an instrument housing or junction box for electrical, electronic, or pneumatic components. It is ideal for applications where a lightweight, corrosion resistant enclosure is required.
Cubic Capacity1001 cu.in
Height7 in
NEMA Rating4X
TypeEnclosure
Weight5 lb.
KnockoutsNo
Nema Rating4X
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P058
UL ListedYes
MaterialAluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus;IEC
ListingsUL, CSA
