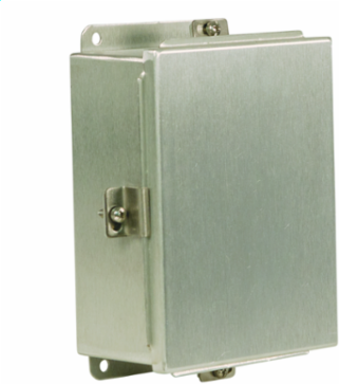

Wiegmann BN4060403AL N4X JIC Lift-Off Cover 6X4X3 Aluminum
- MPN: BN4060403AL
- UPC: 786725376759
- PPN: HBL-BN4060403AL
- UNSPSC: 39121324
CAD
$461.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N4X JIC Lift-Off Cover 6X4X3 Aluminum
Features
- Bodies and doors fabricated from .080-inch thick (2 millimeters) 5052-H32 aluminum
- Continuously welded seams ground smooth, less holes or knockouts
- Closed cell oil resistant neoprene gasket
- External mounting plates, top and bottom of enclosure
- Weldnuts are provided to secure optional panel
- Stainless steel screws and clamps on four sides of cover to assure water tight seal
- Optional panels and terminal kits must be ordered separately
- Grounding provisions provided
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Actual Width
- 4.500 in
- Application
- Designed as an instrument housing or junction box for electrical, electronic, or pneumatic components. It is ideal for applications where a lightweight, corrosion resistant enclosure is required.
- Cubic Capacity
- 140 cu.in
- Height
- 4 in
- NEMA Rating
- 4X
- Type
- Enclosure
- Weight
- 1 lb.
- Mounting Type
- External Mounting Plates
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N4,JIC,ALUM,CLAMPCVR 6"X4"X3"
- Harmonization Code
- 7616995190
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Clamps
- Construction
- Continuously Welded Seams
- Series
- BN4-AL Series
- BOX SIZE
- 4.000x6.500x4.500 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725376759
- Pallet Weight
- 0.000 lb.
Actual Depth6.500 in
Number of Doors (Fixed)1
Cover TypeLift Off
Depth7 in
MountingExternal Mounting Plates
StandardcULus;IEC
Width5 in
KnockoutsNo
Nema Rating4X
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P058
UL ListedYes
MaterialAluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus;IEC
ListingsUL, CSA
