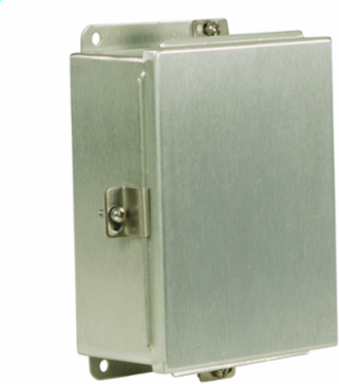

Wiegmann BN4141206AL N4X JIC Lift-Off Cover 14X12X6 Aluminum
- MPN: BN4141206AL
- UPC: 786725376858
- PPN: HBL-BN4141206AL
- UNSPSC: 39121324
CAD
$1000.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N4X JIC Lift-Off Cover 14X12X6 Aluminum
Features
- Bodies and doors fabricated from .080-inch thick (2 millimeters) 5052-H32 aluminum
- Continuously welded seams ground smooth, less holes or knockouts
- Closed cell oil resistant neoprene gasket
- External mounting plates, top and bottom of enclosure
- Weldnuts are provided to secure optional panel
- Stainless steel screws and clamps on four sides of cover to assure water tight seal
- Optional panels and terminal kits must be ordered separately
- Grounding provisions provided
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Actual Height | 6.500 in |
| Number of Doors (Fixed) | 1 |
| Cover Type | Lift Off |
| Depth | 15 in |
| Mounting | External Mounting Plates |
| Standard | cULus;IEC |
| Width | 13 in |
| Engineering Drawing 3 Display Text | MOD Center Drawings Instructions |
| Mounting Type | External Mounting Plates |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | N4,JIC,ALUM,CLAMPCVR 14X12X6 |
| Harmonization Code | 7616995190 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| UL Listed | Yes |
| Material | Aluminum |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 7.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Actual Depth | 14.5 in |
|---|---|
| Actual Width | 12.500 in |
| Application | Designed as an instrument housing or junction box for electrical, electronic, or pneumatic components. It is ideal for applications where a lightweight, corrosion resistant enclosure is required. |
| Cubic Capacity | 1365 cu.in |
| Height | 7 in |
| NEMA Rating | 4X |
| Type | Enclosure |
| Weight | 7 lb. |
| Knockouts | No |
| Nema Rating | 4X |
| Class Code | P03 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P03P058 |
| Latches Type | Clamps |
| Construction | Continuously Welded Seams |
| Series | BN4-AL Series |
| BOX SIZE | 7.500x16.000x14.000 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725376858 |
| Pallet Height | 50.000 in |
| Pallet Weight | 380.000 lb. |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus;IEC |
|---|
