Wiegmann BN4080603AL N4X JIC Lift-Off Cover 8X6X3.5 Aluminum
- MPN: BN4080603AL
- UPC: 786725376797
- PPN: HBL-BN4080603AL
- UNSPSC: 39121324
CAD
$538.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

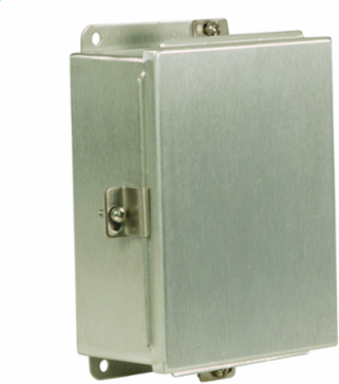

N4X JIC Lift-Off Cover 8X6X3.5 Aluminum
Features
- Bodies and doors fabricated from .080-inch thick (2 millimeters) 5052-H32 aluminum
- Continuously welded seams ground smooth, less holes or knockouts
- Closed cell oil resistant neoprene gasket
- External mounting plates, top and bottom of enclosure
- Weldnuts are provided to secure optional panel
- Stainless steel screws and clamps on four sides of cover to assure water tight seal
- Optional panels and terminal kits must be ordered separately
- Grounding provisions provided
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Width
- 6.500 in
- Application
- Designed as an instrument housing or junction box for electrical, electronic, or pneumatic components. It is ideal for applications where a lightweight, corrosion resistant enclosure is required.
- Cubic Capacity
- 252 cu.in
- Height
- 4 in
- NEMA Rating
- 4X
- Type
- Enclosure
- Weight
- 2 lb.
- Knockouts
- No
- Nema Rating
- 4X
- Class Code
- P03
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P03P058
- UL Listed
- Yes
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Depth8.500 in
Number of Doors (Fixed)1
Cover TypeLift Off
Depth9 in
MountingExternal Mounting Plates
StandardcULus;IEC
Width7 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
Mounting TypeExternal Mounting Plates
ARRA CompliantContact Manufacturer
Description - InvoiceN4,JIC,ALUM,CLAMPCVR,8X6X3
Harmonization Code7616995190
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches TypeClamps
ConstructionContinuously Welded Seams
SeriesBN4-AL Series
BOX SIZE4.500x10.000x8.250 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725376797
Pallet Height49.500 in
Pallet Weight525.000 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus;IEC
ListingsUL, CSA
