Square D 8538SCASP1 NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120VAC coil, NEMA 3R/12 [TAA]
![NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120VAC coil, NEMA 3R/12 [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/7b37cdb10f615409e6b31ee4af1be671ae5082e2-medium.png)
![NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120VAC coil, NEMA 3R/12 [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/31634810154725df6d2827421522b2c663ff43b3-medium.png)
![NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120VAC coil, NEMA 3R/12 [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/0dfd29599f601ea6f55115cbe188654dda26ddf1-medium.png)
![NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120VAC coil, NEMA 3R/12 [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/f45dcc8d883712619f19dc0bb3d3bea89a5a2223-medium.png)
![NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120VAC coil, NEMA 3R/12 [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/40160eec90c5d24bec3b1e2caeace4579d78e2e4-medium.png)
Square D 8538SCASP1 NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120VAC coil, NEMA 3R/12 [TAA]
- MPN: 8538SCASP1
- UPC: 785901685043
- PPN: SCH-8538SCASP1
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4068.15/ EA
Description

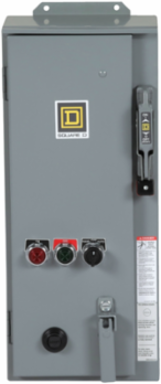

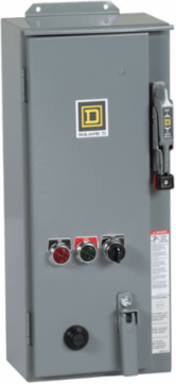

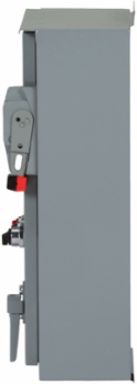

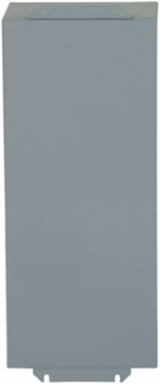

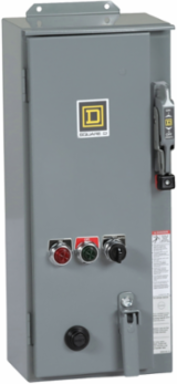

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of up to 5 HP at 208 and 240 VAC poly phase. Combination starter has 30 ampere Class H and K fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 24.0 inches tall, 8.34 inches wide and 9.5 inches deep. A wide variety of accessories are available for Type S starters. This combination starters is supplied with a HOA selector switch, a red and green pilot light, auxiliary contacts and an interlock on disconnect. Type S combination starters are UL listed and CSA certified.
Features
- Flexible with four overload relays types
- Customizable with hundreds of combinations
- Streamline installation, wiring, maintenance and field modifications
- Reliable build for long mechanical life and electrical endurance
- This product is TAA compliant.
Specifications
Conformance Attributes
- Product Certifications
- CSA, UL Listed
Complementary Attributes
- Maximum Horse Power Rating
- 5-5 hp 200 V AC, 3 phase, 5-5 hp 230 V AC, 3 phase
- Line Rated Current
- 27 A
Control Circuitseparate control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Signalling
- red indicator on LED, green indicator off LED
- Carbon Footprint Of The Distribution Phase A4
- 5.045723368121406, 5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 2.550868753190603, 3 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 704 kg CO2 eq., 703.77631293223
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2507019EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Control Type
- selector switch HAND-OFF-AUTO)
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 17.46 kg
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- S
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 839 kg CO2 eq.
- Medium Desc
- NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120VAC coil, NEMA 3R/12 [TAA]
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U and 3 pole 1 non-reversing combination motor controller with a fussed disconnect and solid state overload, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Uc Control Circuit Voltage2110 V AC 50 Hz, 120 V AC 60 Hz
Carbon Footprint Of The End Of Life Phase C1 To C426 kg CO2 eq., 25.647688580996267
Carbon Footprint Of The Manufacturing Phase A1 To A3102 kg CO2 eq., 102.34547498606591
Uc Control Circuit Voltage5110 V AC 50 Hz, 120 V AC 60 Hz
Local Publishable Date2025-12-16
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Control Circuitseparate control circuit
Disconnector Device Typefusible disconnect switch H and K, 30 A, electrical SPDT
Motor Starter Typenon reversing
Poles Description3P
Product Or Component TypeCombination Starter
ReturnabilityYes
Thermal Overload Typemelting alloy 3
Ue Rated Operational Voltage2600 V AC
Stocking FlagN
Pep CodeENVPEP2507019EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Ue Rated Operational Voltage5600 V AC
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Take Back
- No
- China ROHS Regulation
- X
- Carbon Footprint
- 839.3660686206041
- Environmental Disclosure
- ENVPEP2507019EN
- Nema Size
- 1
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2507019EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2507019EN
Nema Degree Of ProtectionNEMA 12 painted sheet steel with external reset
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- Combination Starter
Range Of ProductS
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Compliance
- TAA Compliant
Depth9.5 in
