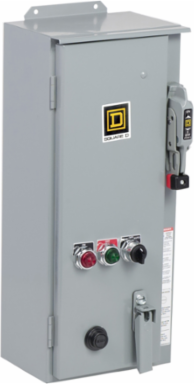

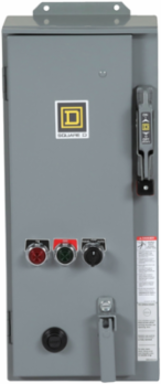

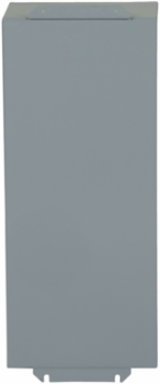

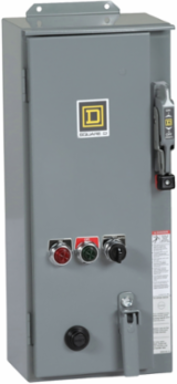

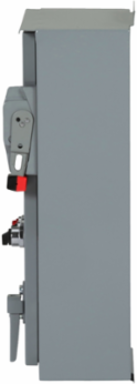

Square D 8538SCASP3 NEMA combination starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120VAC coil, NEMA 3R/12 [TAA]
- MPN: 8538SCASP3
- UPC: 785901828457
- PPN: SCH-8538SCASP3
CAD
$4312.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of up to 10 HP at 480 and 600 VAC three phase. Combination starter has 30 ampere Class H and K fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 24.0 inches tall, 8.34 inches wide and 9.5 inches deep. A wide variety of accessories are available for Type S starters. This combination starters is supplied with a HAND/OFF/AUTO selector switch, a red LED pilot light and a green LED pilot light, auxiliary contacts and an interlock on disconnect. Type S combination starters are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Depth
- 8.34 in
ComplianceTAA Compliant
Complementary Attributes
- Maximum Horse Power Rating
- 10-10 hp 460 V AC, 3 phase, 10-10 hp 575 V AC, 3 phase
- Control Circuit
- separate control circuit
- Ue Rated Operational Voltage
- 600 V AC
Uc Control Circuit Voltage110 V AC 50 Hz, 120 V AC 60 Hz
Line Rated Current27 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Signalling
- red indicator on LED, green indicator off LED
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 26 kg CO2 eq., 25.75198330546653
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 103 kg CO2 eq., 102.76165647083172
- Certificate Agency
- CSA, UL Listed
- Local Publishable Date
- 2025-11-19
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2507019EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- selector switch HAND-OFF-AUTO)
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3P
- Product Or Component Type
- Combination Starter
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 840 kg CO2 eq.
- Pep Code
- ENVPEP2507019EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 24 in
- Width Nominal
- 9.5 in
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A45.066241487201396, 5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A52.5612417017287785, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6704 kg CO2 eq., 703.77631293223
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Control Circuitseparate control circuit
Disconnector Device Typefusible disconnect switch H and K, 30 A, electrical SPDT
Motor Starter Typenon reversing
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductS
Software Versionv6.2.5-6
Thermal Overload Typemelting alloy 3
Warranty In Months18
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U and 3 pole 1 non-reversing combination motor controller with a fussed disconnect and solid state overload, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential, In %82
Length Total3.25 in
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 839.9174358974584
- Environmental Disclosure
- ENVPEP2507019EN
- Nema Degree Of Protection
- NEMA 12 painted sheet steel with external reset
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2507019EN
Eu Rohs DirectiveCompliant By Exemption
Nema Size1
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2507019EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- Combination Starter
Range Of ProductS
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
