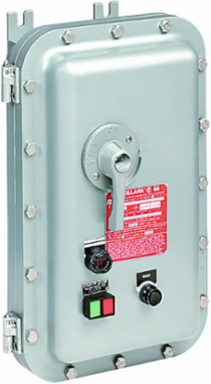

Killark B7021HKCF Size 1 Cutler-Hammer 30A 3 Pole Motor Starter 480V Coil, NEMA 3/4/4X
Killark B7021HKCF Size 1 Cutler-Hammer 30A 3 Pole Motor Starter 480V Coil, NEMA 3/4/4X
- MPN: B7021HKCF
- UPC: 783936096223
- PPN: HBL-B7021HKCF
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Size 1, Cutler-Hammer 3 Pole 3 Wire 30A Combo Starter 480V Coil
Features
- Type 4, 4X rated – providing protection from hose directed water and corrosion.
- Universal mounting pan, pre-drilled to facilitate easy field installation of starters.
- Provision for grounding supplied as standard.
- More wiring room meets latest NEC wire bend requirements.
- Quick release, captivated, 316 grade stainless steel cover bolts.
- Flange sealing gasket located to the inside of cover bolt to prevent water seepage into enclosure through bolt holes.
- Hinged cover provided as standard for an extra measure of safety and convenience.
- Breaker (MCP) handle can be padlocked in “ON” or “OFF” position.
- Provisions provided for drain and breather plus conduit openings for power and control.
- Reset button provided as standard.
- Two control operator openings provided plugged as standard.
- Additional openings can be factory or field drilled.
- Copper-free (less than 4/10 of 1% copper) enclosure.
- Bolt on bi-directional ductile mounting lugs.
- Killark's B7 Series of Hazardous Location Combination Motor Starters provide motor control utilizing single-speed, non-reversing NEMA-type starters. Rated for indoor and outdoor applications, the copper-free aluminum construction is ideal for harsh and hazardous environments. Standard starter manufacturer configurations include Eaton (Cutler Hammer) AN16 Series and Schneider (Square D) 8536 Series motor starters. Additional local circuit protection (as well as a local means of disconnect) is provided by an integral circuit breaker (Square D configurations) or motor circuit protector (Cutler Hammer configurations).
Specifications
Specifications
- Country of Origin
- United States
- Horsepower - Maximum
- 10
- Voltage Rating
- 600 V
- Nema Rating
- 3, 4, 4X
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Sub Class Code
- D25D253
- UL File Number
- E83696
- Base Unit of Measure
- EA
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Size1
Coil Voltage480V
ARRA CompliantContact Manufacturer
Description - InvoiceSZ 1,CH 3P3W 30A CB COMBO STRTR 480 COIL
Harmonization Code8536504000
MSDS FlagNo
CSA File NumberLR11714
SeriesB7 Series
Carton - SCC-14 Next Lower Level Sub Pack00783936096223
Certifications
- EU RoHS Indicator
- Contact Manufacturer
