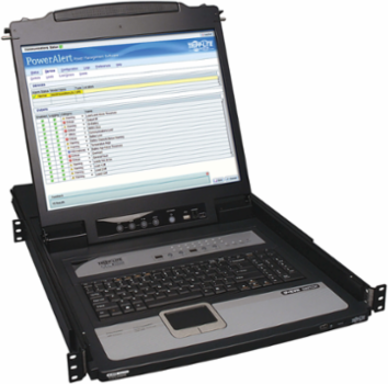

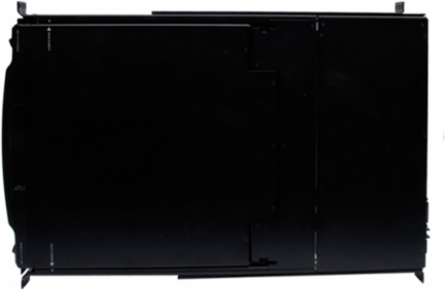

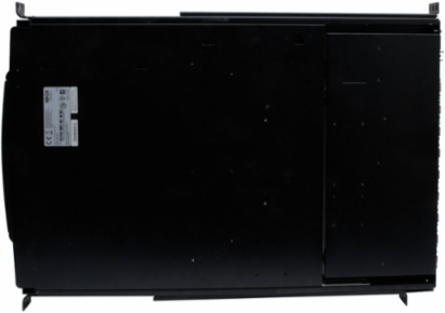

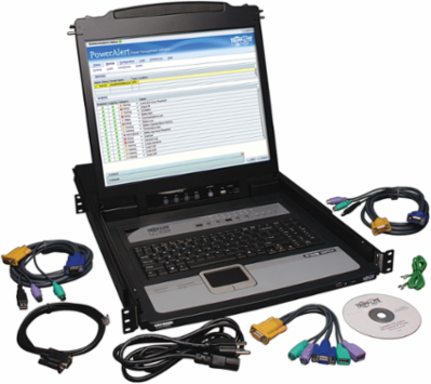

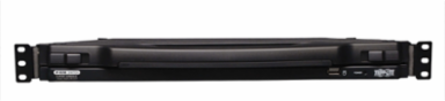

Tripp Lite B020-U16-19-IP 16-Port 1U Rack-Mount KVM Switch with 19 Inch LCD, IP Access
- MPN: B020-U16-19-IP
- UPC: 037332188052
- PPN: TRP-B020-U16-19-IP
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control a network of 16 servers or computers directly from one keyboard, mouse and monitor housed in 1U of rack space. Built-in IP access allows control from anywhere via LAN, WAN or Internet.
Features
- Controls up to 16 computers remotely via LAN, WAN or Internet
- Installs in just 1U to save rack space
- Works with all major operating systems and browsers
- Protects data with 3 security levels (Admin, User and Select)
- Enables up to 64 secure user accounts
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
- Ports
- 16
- Maximum Input Amps
- 1A
- Input Frequency
- 50/60 Hz
- Storage Temperature Range
- -20 to 60 C (-4 to 140 F)
- Video Resolution Built-in Monitor
- 1280 x 1024 @ 75 Hz
- Max Connected Computers
- 16 (up to 264 with daisy-chaining)
- Security Levels
- Admin, User, Select
- User Accounts Supported
- Up to 64
- LCD Monitor Size
- 19 in
- Dimensions (H x W x D)
- 1.73 x 18.9 x 27 in (4.39 x 48.00 x 68.58 cm)
- Housing Material
- Steel
- Compliance
- UL 60950-1, CAN/CSA, FCC Part 15 Class A, CE, EN 60950-1, RoHS
Input Voltage100-250V AC (100V,110V,115V,120V,127V,140V,200V,208V,220V,230V,240V AC)
Input Current120V (0.8A) / 230V (0.4A)
Operating Temperature0 to 50 C (32 to 122 F)
Relative Humidity0 to 80% RH, Non-Condensing
Video Resolution Remote Console1600 x 1200 @ 60 Hz
CPU RequirementPentium III 1 GHz
Encryption Technologies512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4, 128-bit SSL
Connectivity PortsUSB, PS/2 keyboard/mouse, VGA, External USB 1.1 port
Mounting Depth Compatibility26 in to 38 in deep racks
Weight31 lbs (14.06 kg)
Housing ColorBlack
